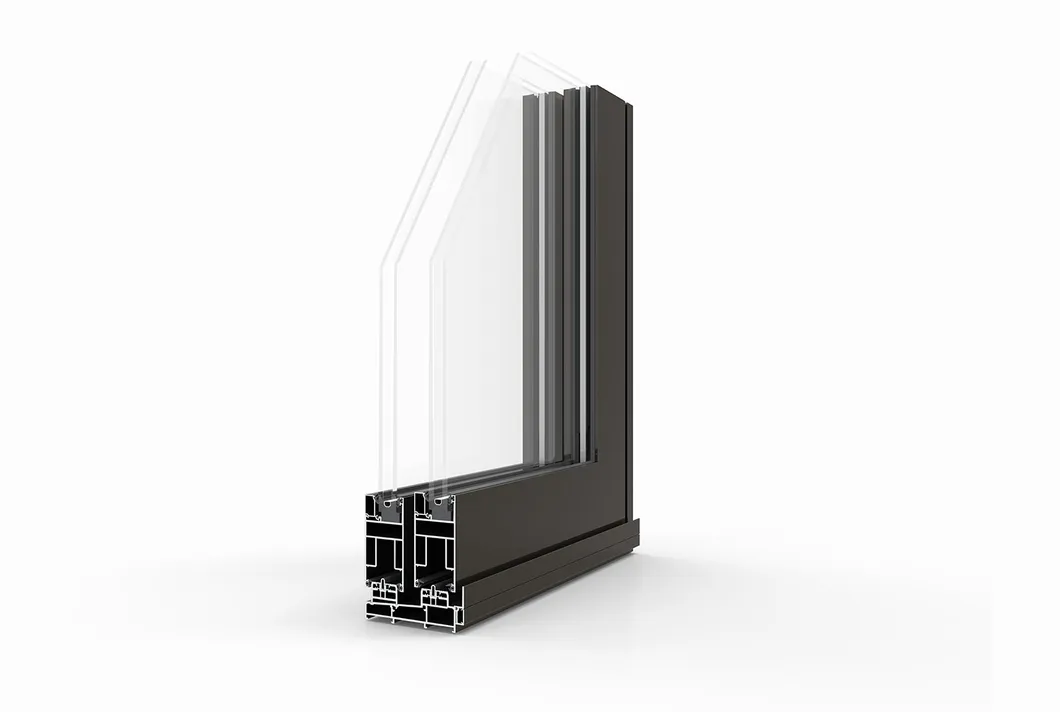

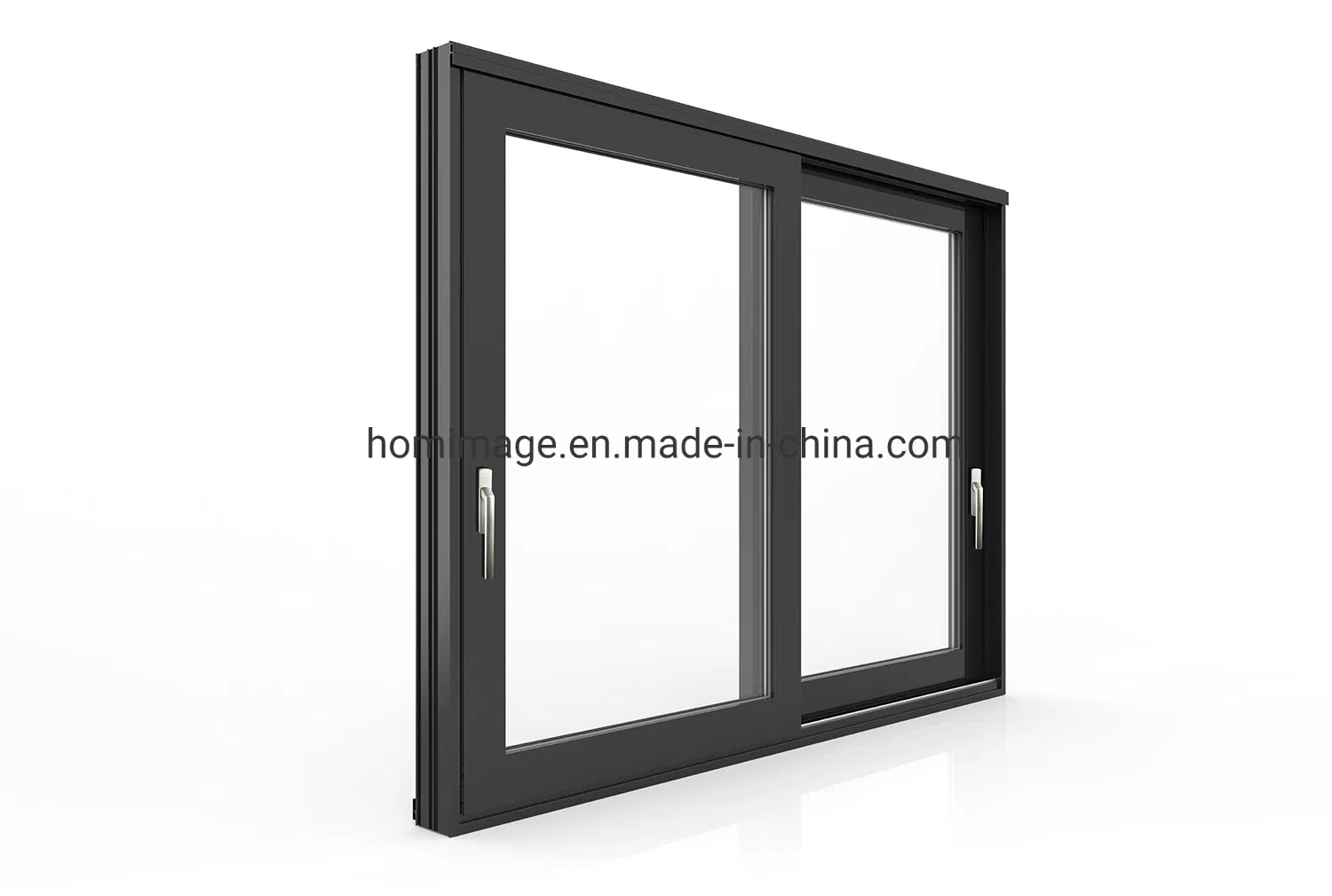

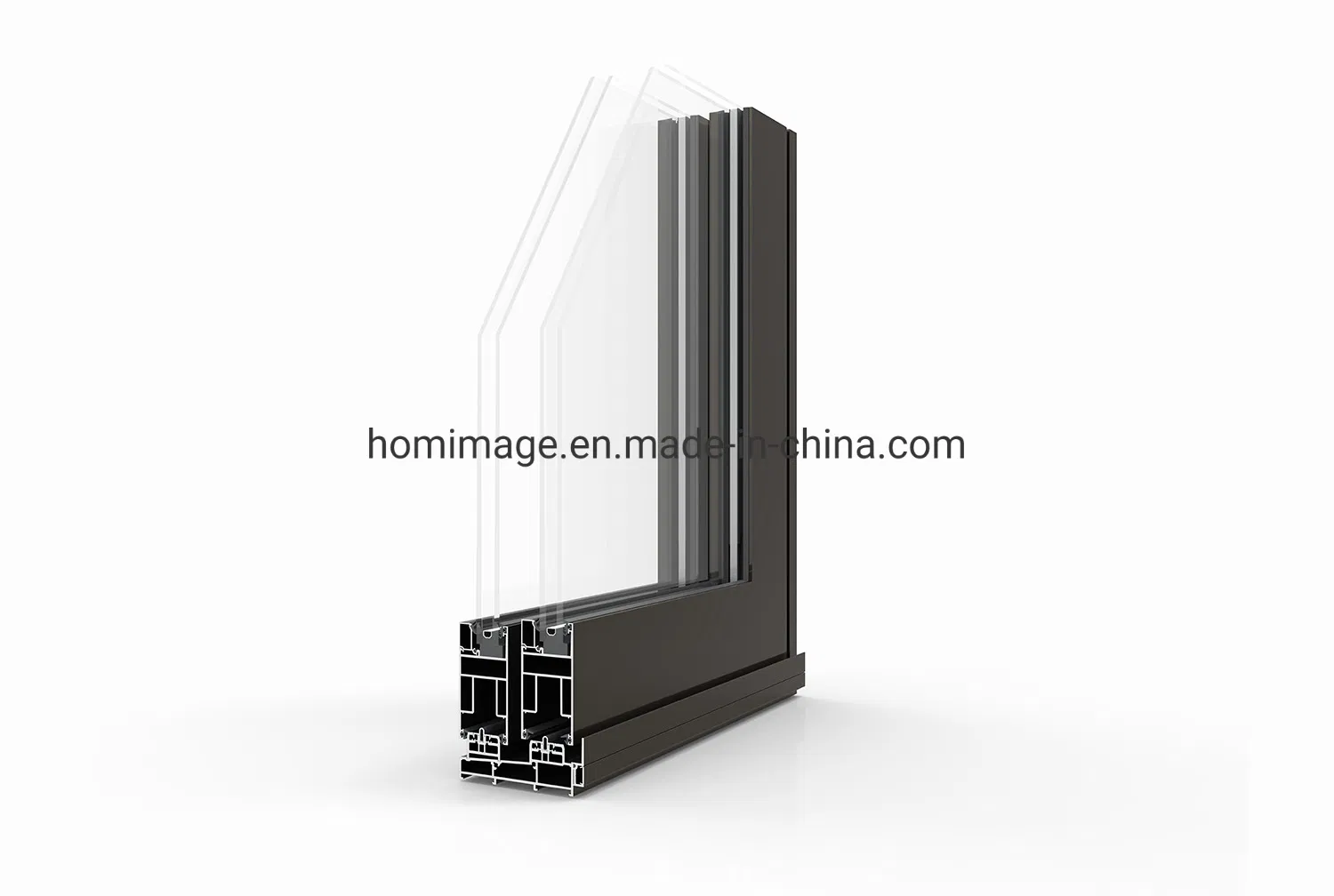

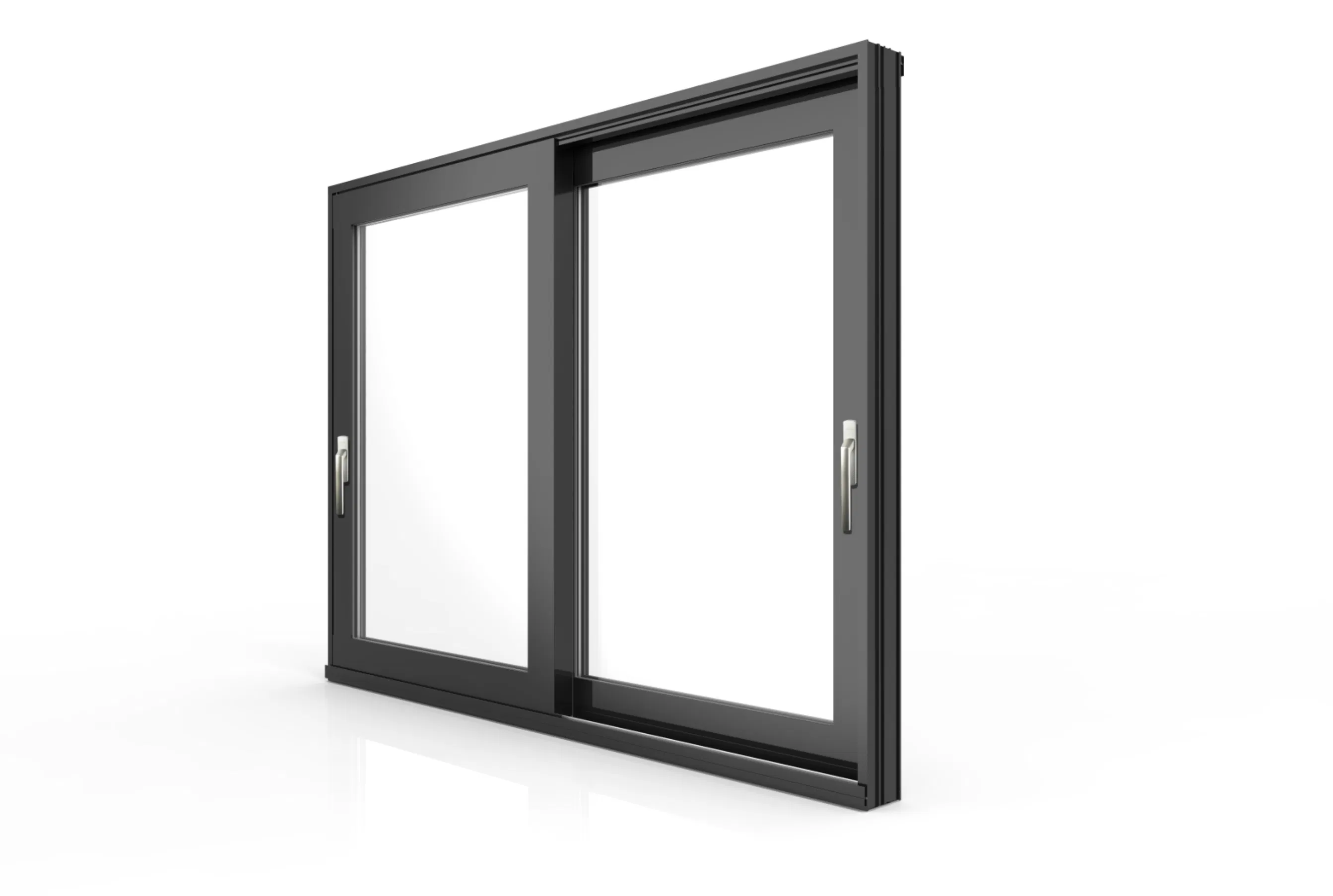

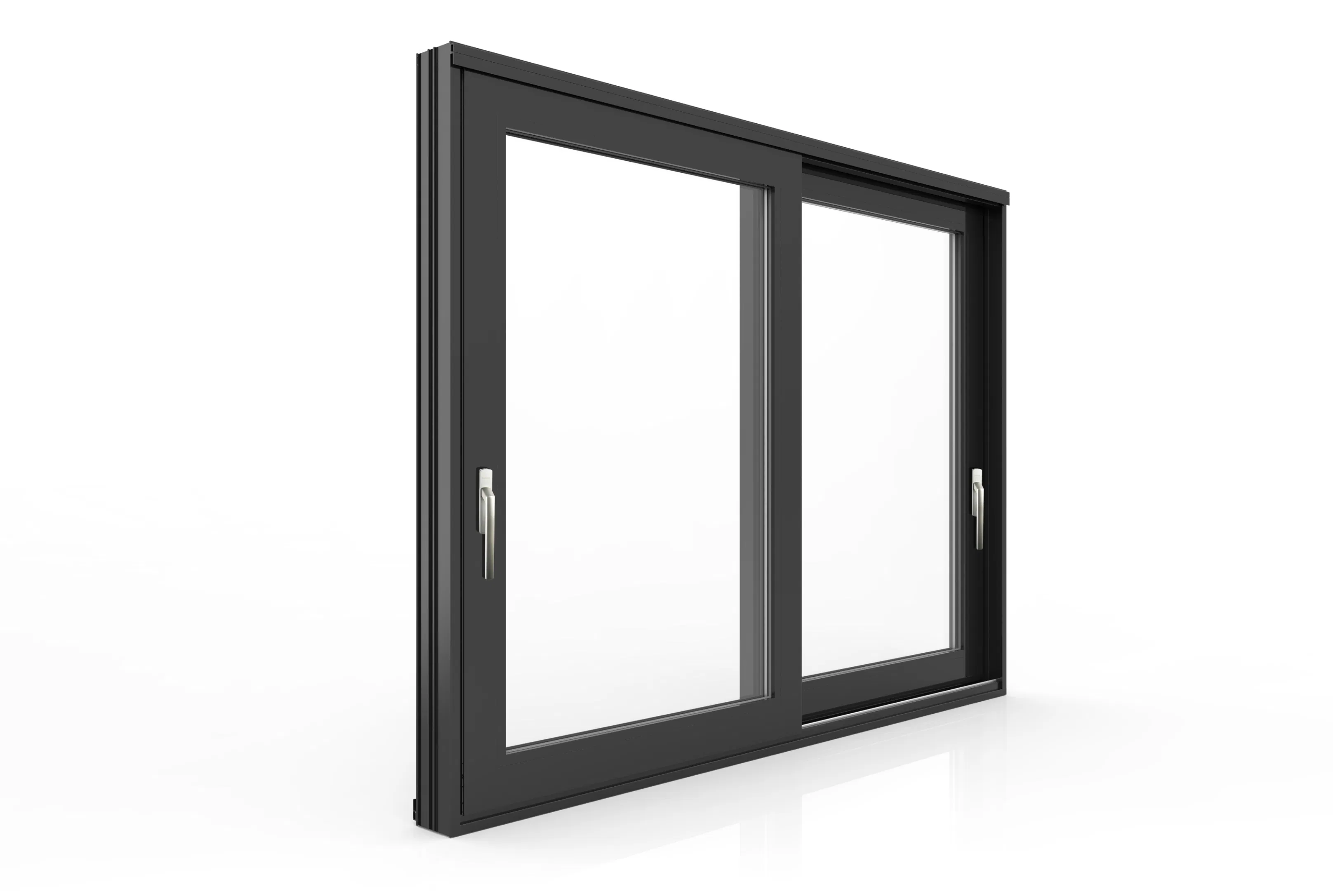

HSD190 Series Aluminium Lift & Slide Door
HLS190 is a high-end class LIFT-SLIDE system, designed for huge openings with an impressive and luxurious aesthetic.
- Intelligent and smart drainage device guarantees maximum water tightness.
- Versatile design allows for classic sliding with the same profiles and performance levels.
- Corner constructions available without mullion profile connections for an unobstructed view.
- Stainless steel rails minimize friction between frames and sashes for a smoother sliding experience.
Technical Performance Parameters
| Heat Preservation (W/m2.k) |
Sound Insulation (dB) |
Watertight Performance (Pa) |
Airtight Performance |
Wind Load Resistance (KPA) |
6+12A+6 Low-E
2.3-2.8 (Level 5/6) |
35dB
(Level 4) |
500PA
(Level 5) |
Level 6 |
3.1KPA
(Level 5) |
Dimensional Parameters
| Suitable Sash Size |
Visible Width/Height |
Frame/Sash Depth |
Glass Thickness |
Width: 720-3300mm
Height: 1800-2700mm
Weight: 300kg |
Frame Width: 40mm
Sash Width: 100mm |
Frame Depth: 130/190mm
Sash Depth: 50mm |
SGU: 8-10mm
DGU: 24-35mm |
Full Product Range
We provide a comprehensive range of architectural and industrial products:
- Aluminium profiles
- Sliding Doors & Windows
- Entrance & Bi-fold Doors
- Unitized Curtain Walls
- Sun rooms & Partitions
- Balcony railings
- Structural Glazing
- Aluminium formworks
Our Professional Services
Customized Solutions: Professional suggestions for complex engineering and design needs.
Technical Support: Wind load calculation, façade optimization, and installation guidance.
System Design: Developing new window and door systems to meet specific market requirements.
Frequently Asked Questions
1. What are the key features of the HSD190 Lift & Slide door?
The HSD190 is a high-end system designed for large openings. It features an intelligent drainage device for water tightness, stainless steel rails for smooth operation, and options for corner constructions without mullions.
2. What type of glass can be used with these doors?
We offer various glass options including Clear, Frosted, Reflective, and Low-E glass. It supports Single Glazed Units (SGU) from 8-10mm and Double Glazed Units (DGU) from 24-35mm.
3. What is the wind load resistance of the HSD190 series?
The HSD190 series has a wind load resistance of 3.1kpa, which meets Level 5 performance standards.
4. What surface treatments are available for the aluminium profiles?
We provide multiple finishes including Powder Coating, Anodized, Electrophoresis, PVDF, and Wooden finished textures to suit different architectural styles.
5. What is the typical lead time for production?
Generally, the delivery time is 15-20 working days after the receipt of payment.
6. Do you offer technical support for installation?
Yes, we provide comprehensive technical support including wind load calculations, system optimization, and detailed installation guides for complex projects.
