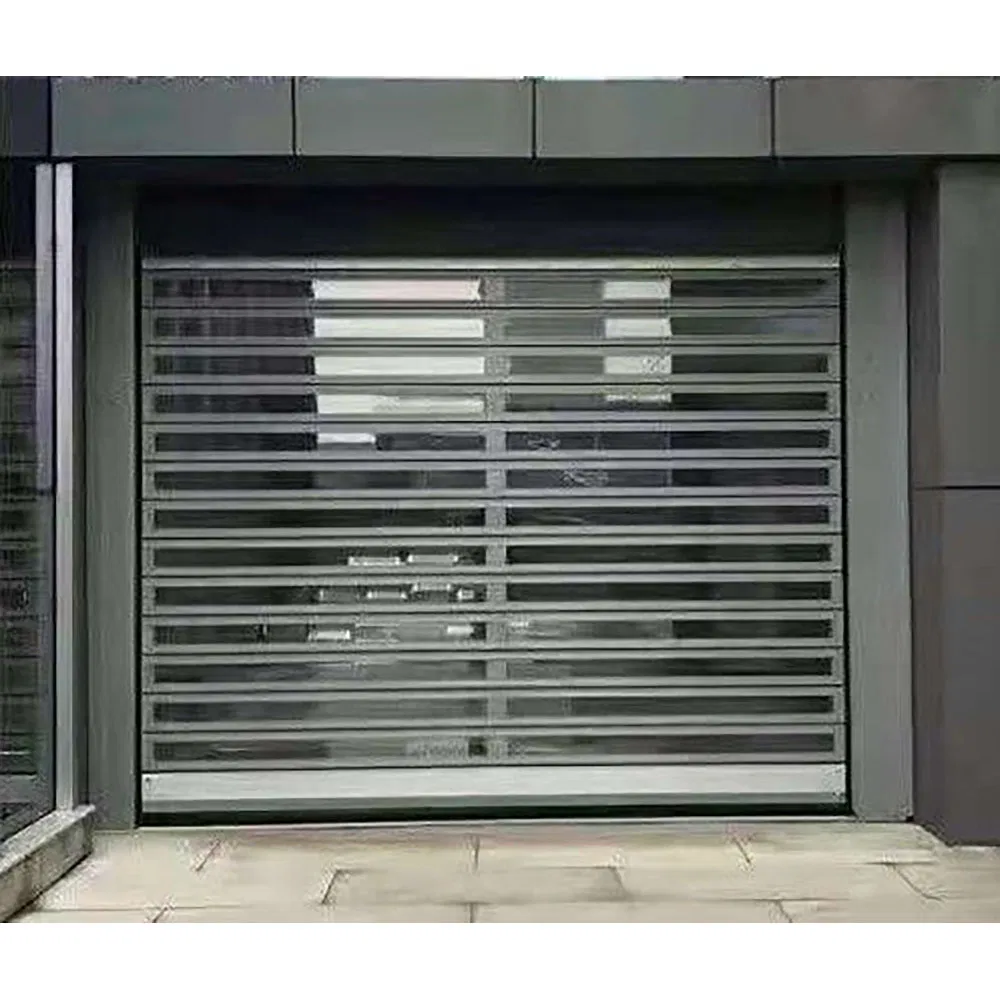

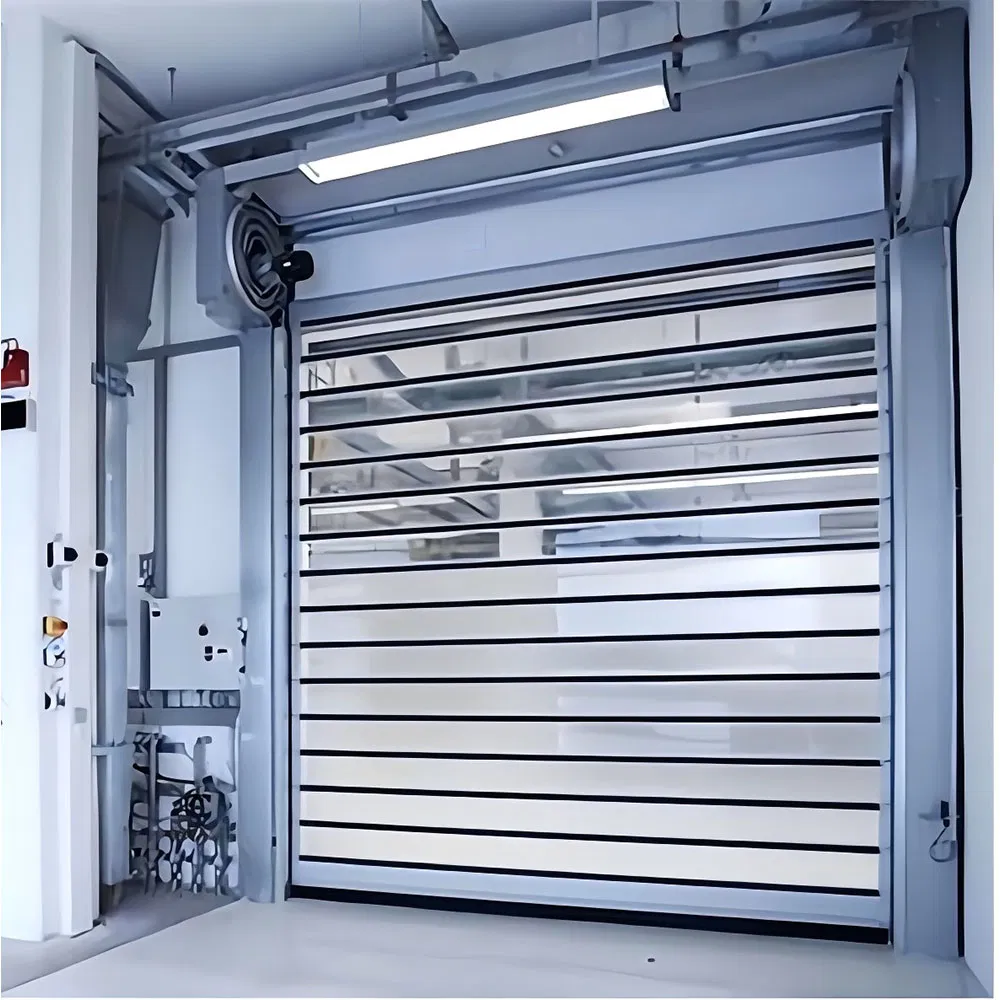

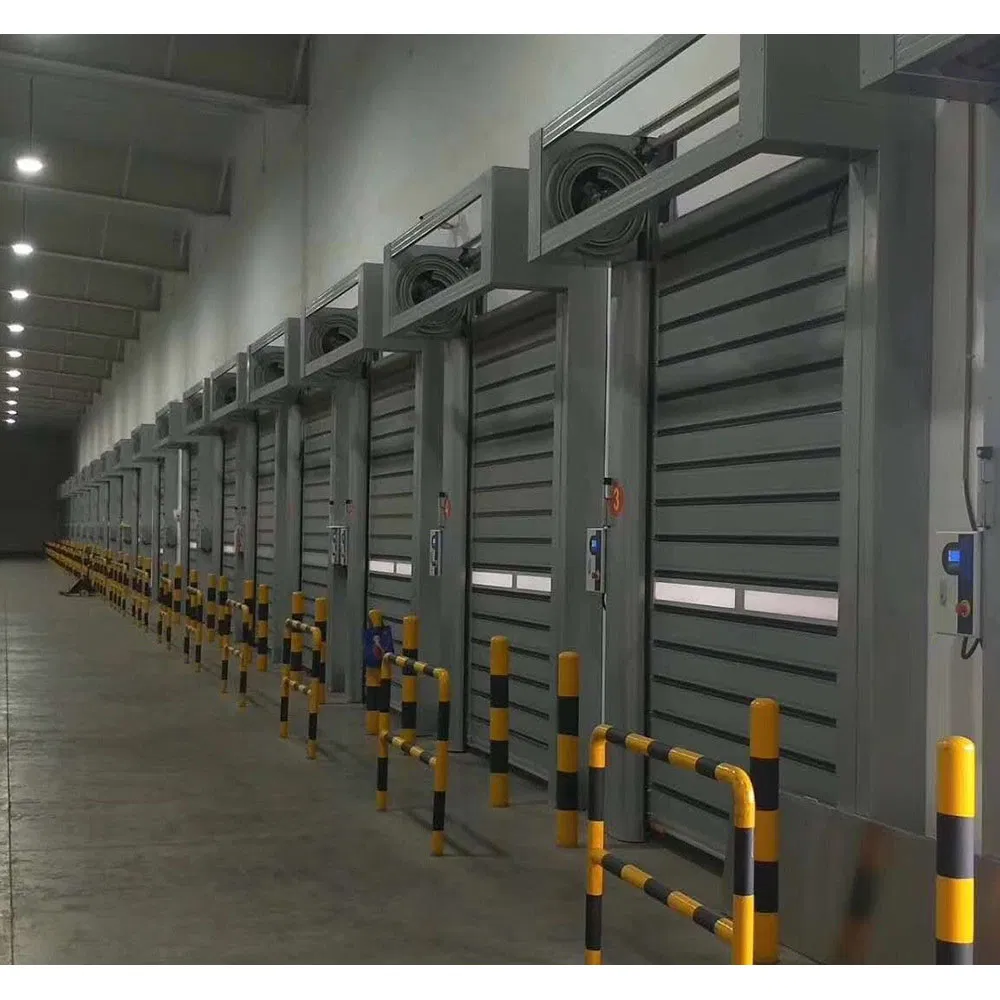

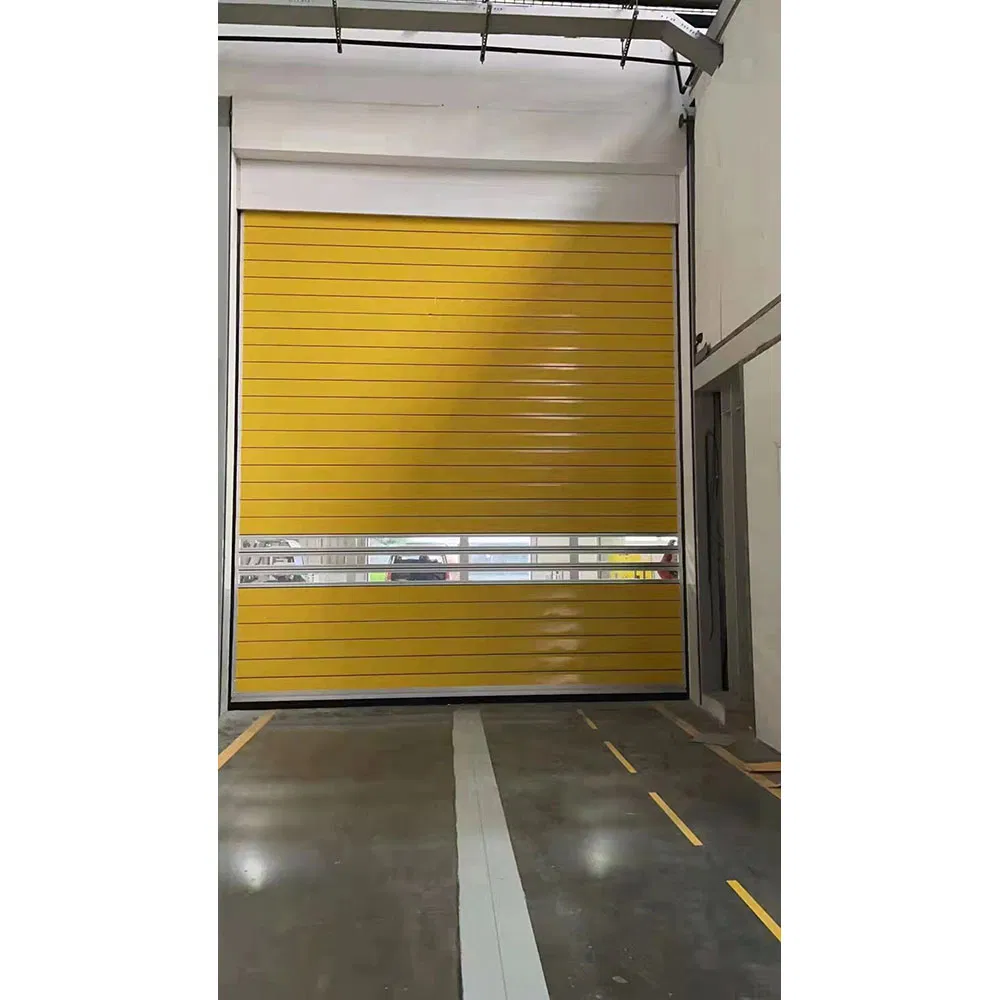

Topanish Door
Topanish Door

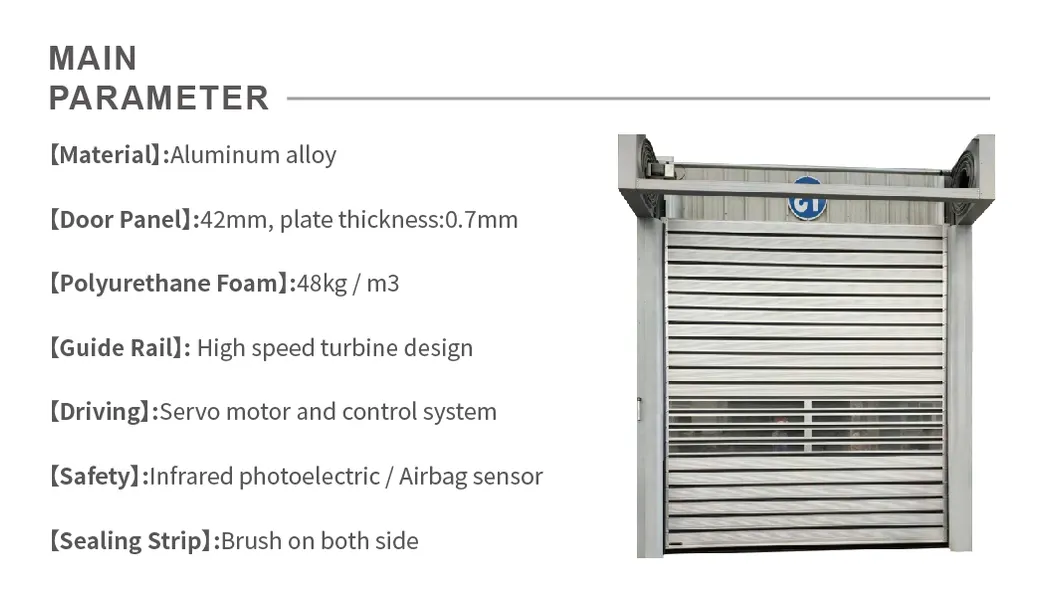

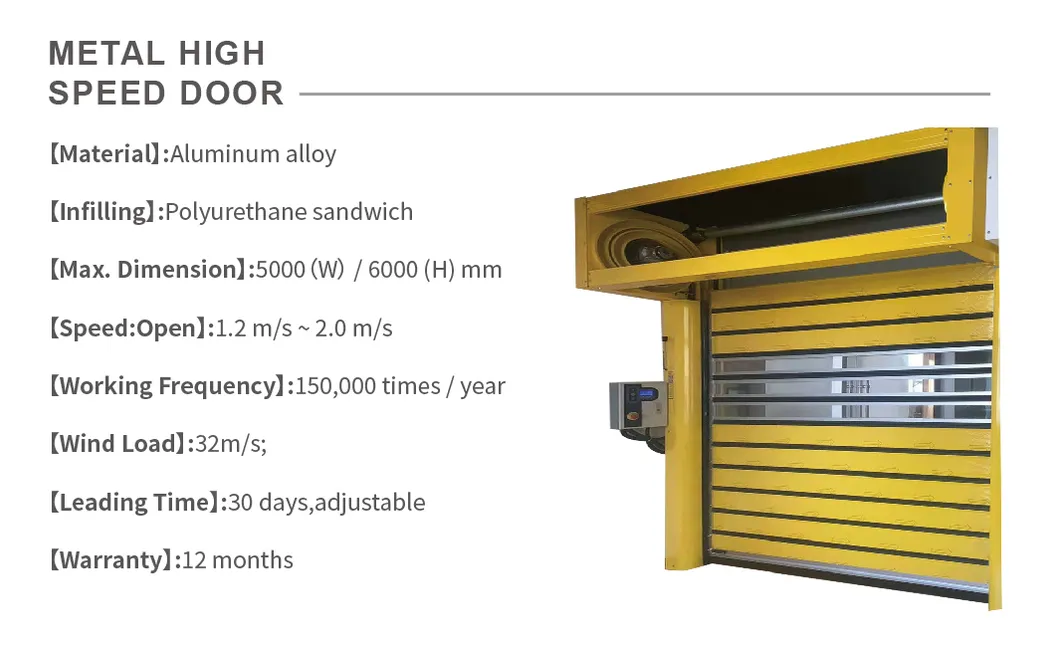

| Item | Description |
|---|---|
| Material | Aluminum Alloy Profile (with or without PU Sandwich), Transparent PVC Strip |
| Thickness of Material | Double-layer Aluminum with PU Sandwich (0.8 mm); Without PU (1.2mm) |
| Thickness of Panel | 40mm, surface treated by anodizing and organic coloring |
| Foam Density | 50kg / m3 |
| Speed | 1 ~ 2.5 m / s |
| Wind Resistance | Beaufort scale 12 (35 m / s) |
| Color | White / Grey / Sliver / Blue / Red / Custom-tailor |
| Noise Level | < 60dB |
| Lifting Way | 90° Vertical Lift / Turbo Type / Ellipse Type |
| Max Dimension | 5000*7500 MM |

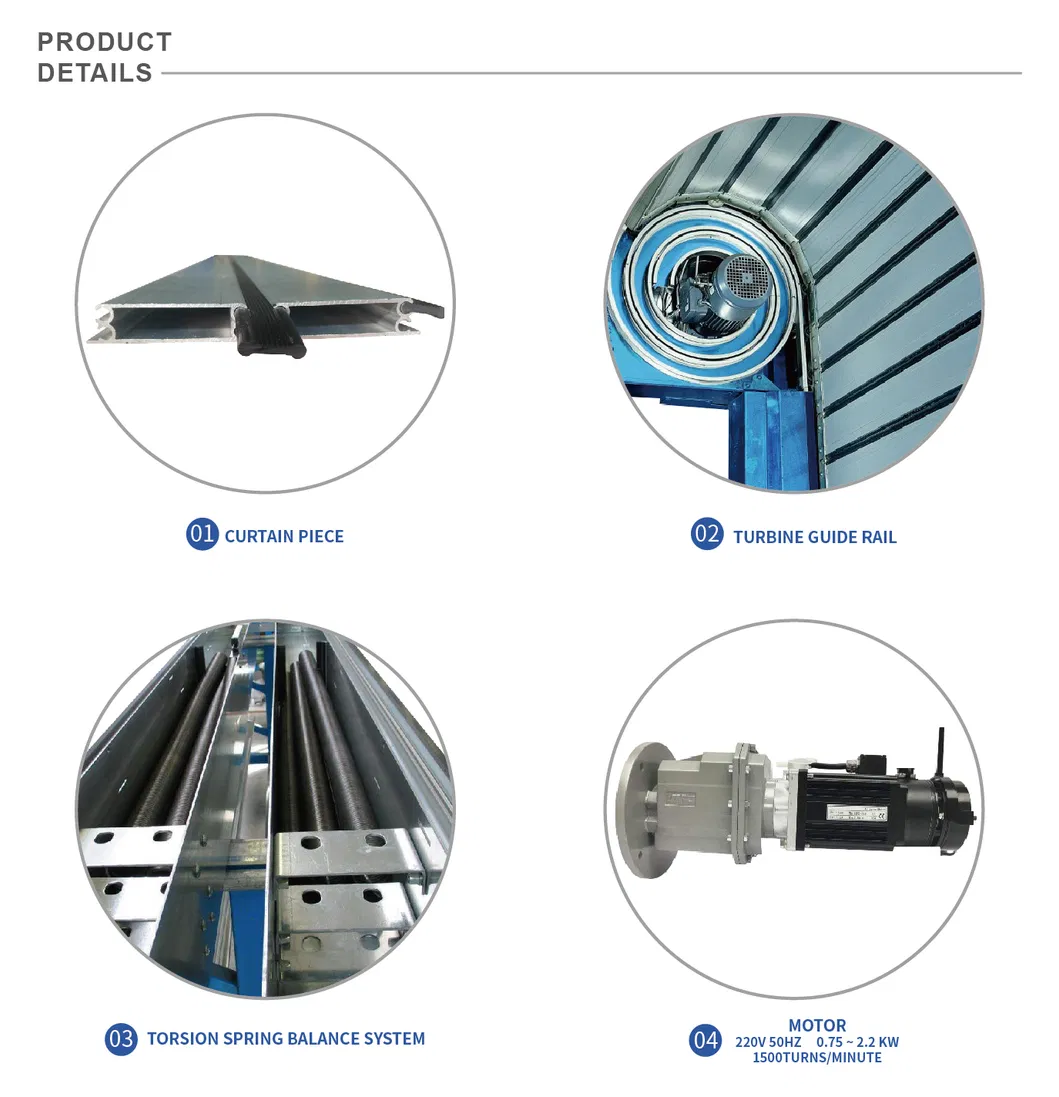

| Drive System | Servo Motor (220V/380V, 0.75Kw to 2.2Kw) |
| Control System | Frequency Converter + PLC or Servo Type |
| Heat Preservation | Broken bridge thermal insulation structure; K<0.6W/(m2•K) |
| Safety Features | 1) Photocell Sensor 2) Airbag Installed at Door Edge Bottom |
Professional Capabilities: We are a dedicated enterprise engaged in industrial door design, manufacturing, sales, and installation.
Custom Solutions: Utilizing advanced equipment and technology, we design diverse products tailored to specific customer needs and professional requirements.
Product Range: Our production line includes steel doors, wood doors, fire doors, high-speed doors, sectional doors, roller shutter doors, and logistic docking systems.
Certifications: Quality management is verified through ISO9001: 2000 and CE Certification.
