Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

1 / 5

Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

YO-Sectional

Material

Aluminum Alloy

Type

Revolving

Open Style

Revolving

Opening Type

Induced

Special Function

Thermal Insulated

Color

Various Color

Certification

ISO9001, CE

Position

Commercial

Surface Finishing

Finished

Application

Cold Room, Warehouse, Workshop

Door Panel Thickness

40mm

Shipment

7 Days After Deposit

Power Supply

1-Phase 220V, or 3-Phase 380V

Transport Package

Export Wooden Case

Specification

Max size 8m*8m

📦

Packaging & Delivery

Package Size

3000.00cm * 600.00cm * 600.00cm

Package Gross Weight

300.000kg

📄

Product Description

Sectional door has a beautiful appearance, high strength, low noise and insulation properties, making it widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, printing, supermarkets, etc.

Technical Data

Motorized Transparent Sectional Door Polycarbonate Garage door
Max dimension	width * height 12000mm*8000mm
Power supply	220±10%V, or 380V, 50/60Hz, IP55
Opening and closing speed	20-40cm/s
Door panel thickness	40mm/50mm/75mm/100mm/Back rib door
PU Density	48±2kg/m³
Wind resistance	28-35m/s (Class 10-12)
Sound insulation level	24DB
Insulation level	0.38W/M°C
Water tightness	30Pa
K Value	1.5W/M2.K
Thermal Conductivity	<= 0.033W/M.K

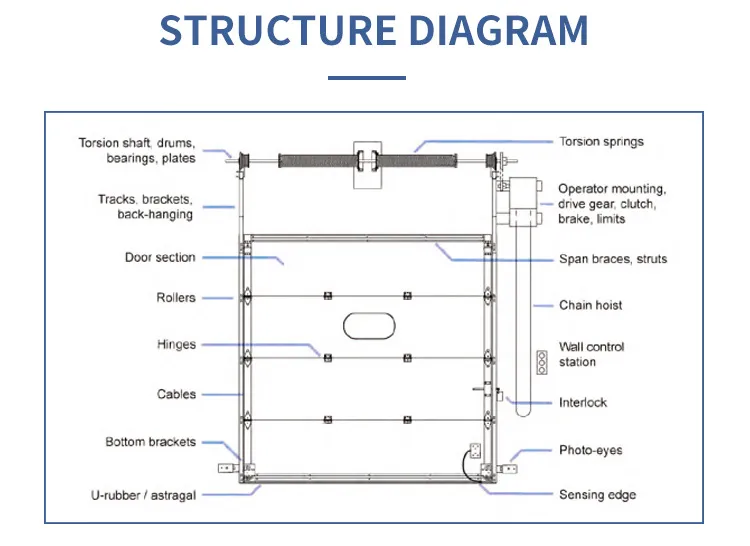

Structure Diagram

Product Details

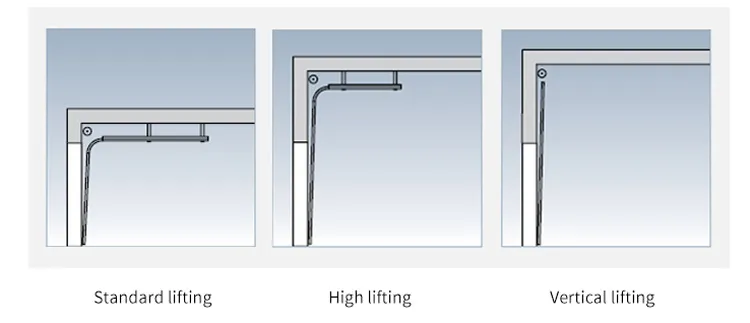

1. Lifting way:

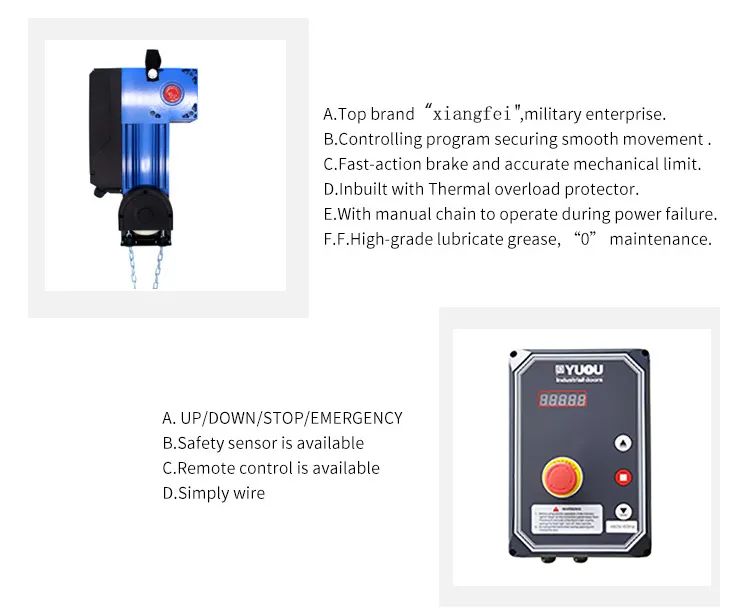

2. Motor and controller:

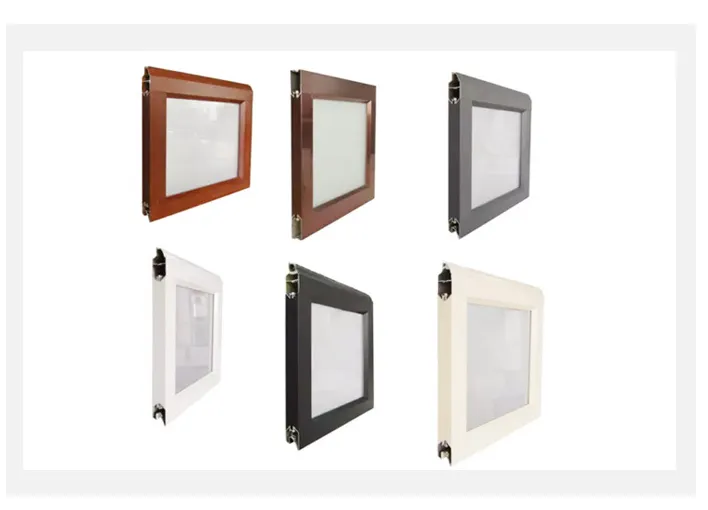

3. Panel (Finger safe style):

A. Two layer 1.2mm aluminum alloy, surface: Electrostatic coating. total thickness: 40mm

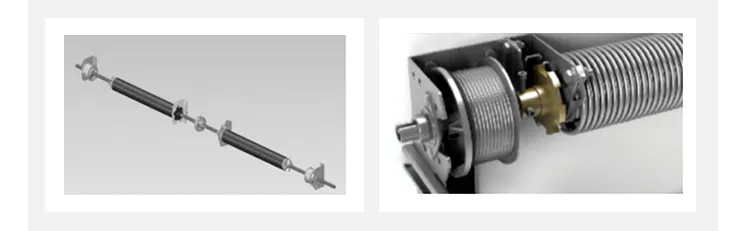

4. Safety device:

Spring brake device: anti-broken
Service life: 100 thousand opening and closing
Driving force: 140N
Chosen according to door size, weight and lifting pattern

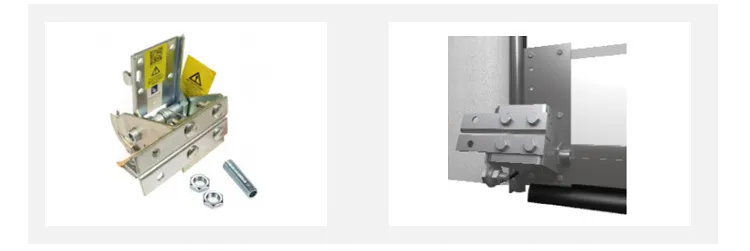

5. Accident Dropping Safety Device:

Door bottom is equipped with dropping avoid steel cord, securing the accident dropping within 5cm.

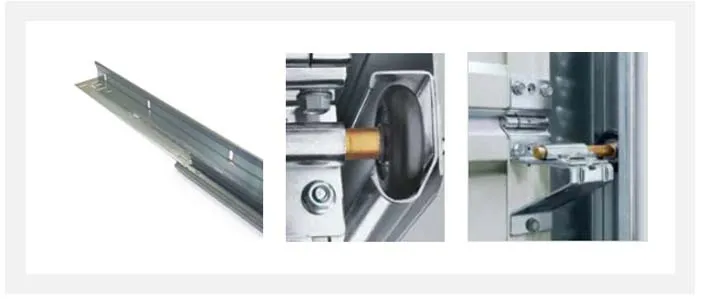

6. Guide rail:

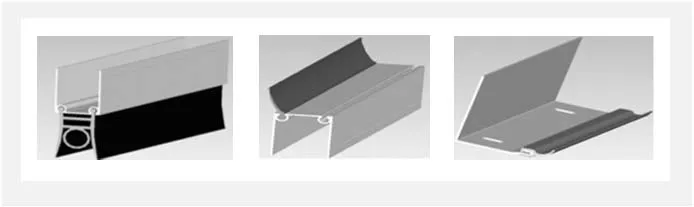

7. Seals:

EPDM Sealing rubber is installed onto top, bottom and periphery, cold resistant and anti-broken.

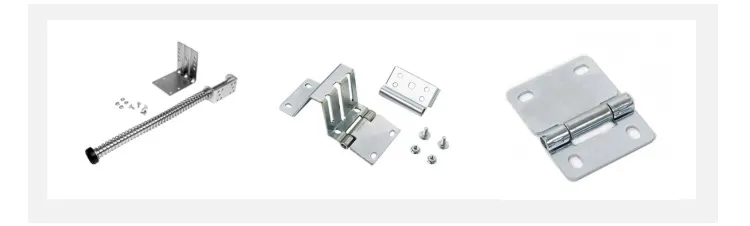

8. Buffer and Hinges (2.5mm steel plate):

9. Manual Device (Only for manual door):

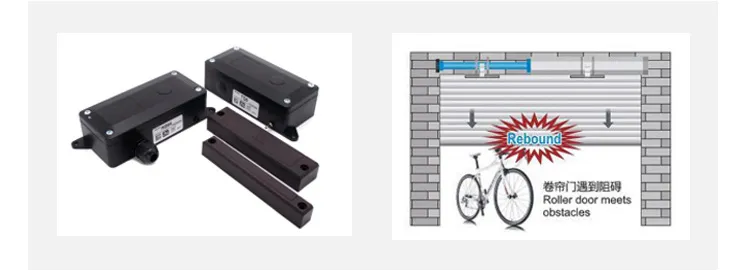

10. Bottom Wireless Safety Airbag:

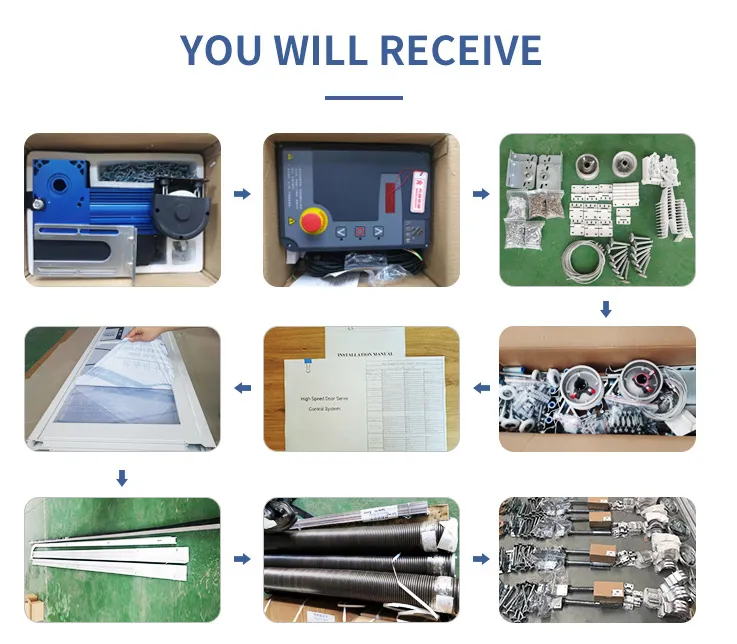

You Will Receive:

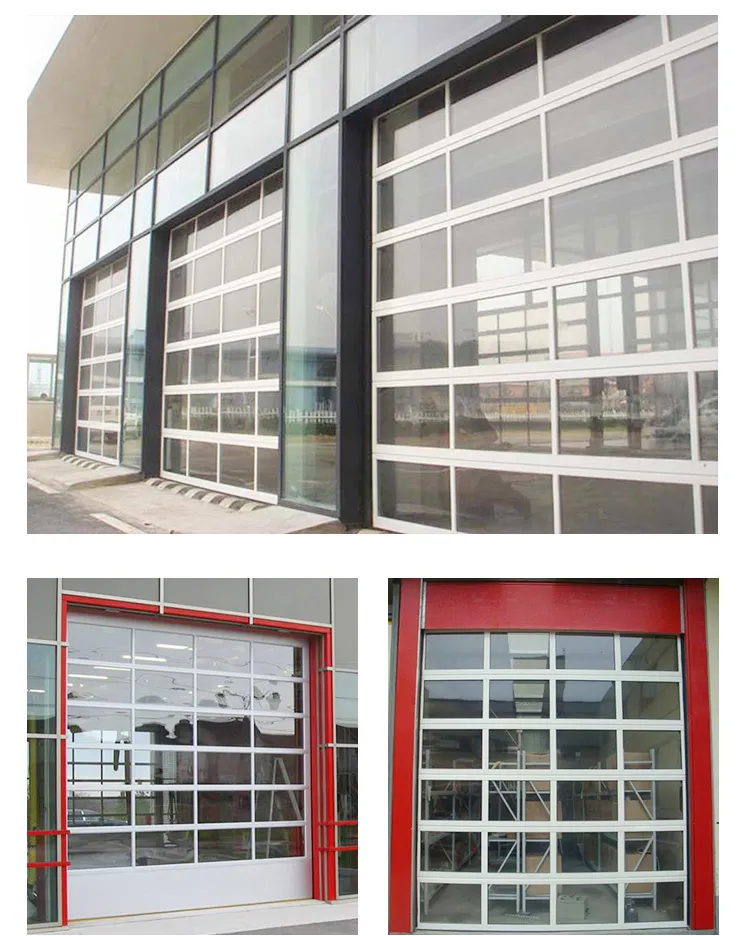

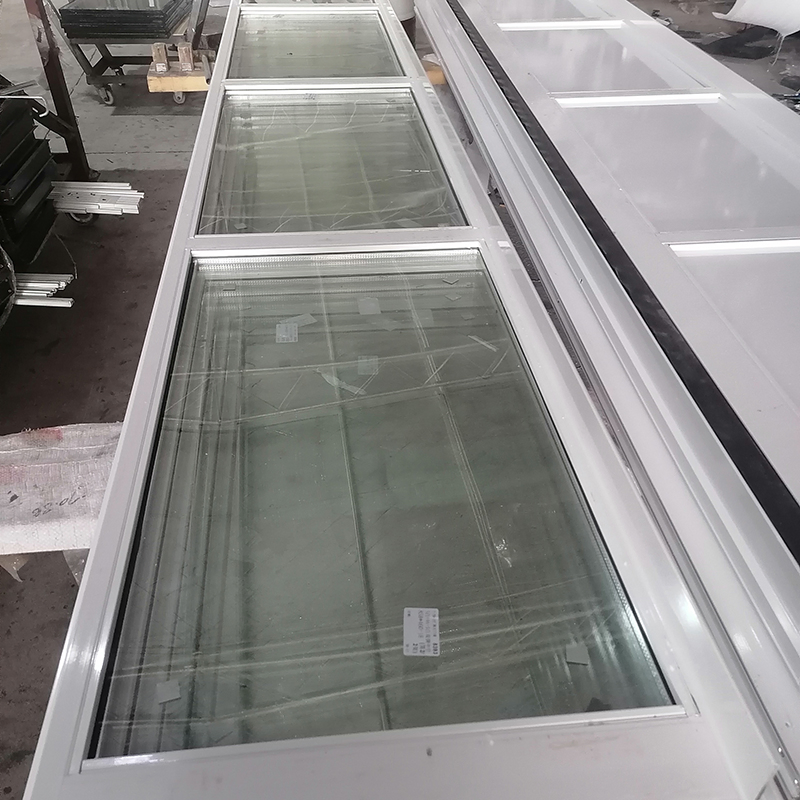

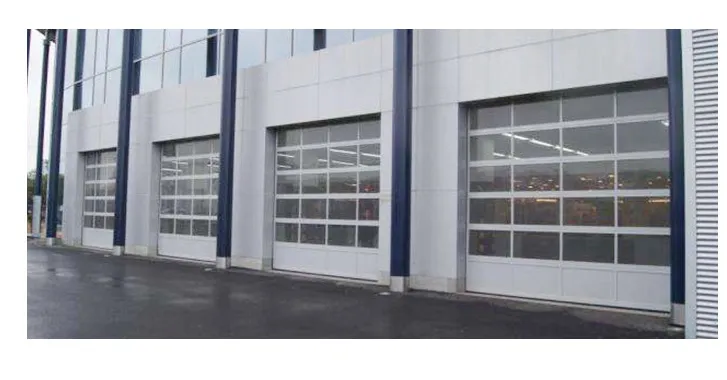

Products Real Shot:

❓

Frequently Asked Questions

What is the maximum size available for these sectional doors?

The sectional doors can be manufactured up to a maximum dimension of 12000mm in width and 8000mm in height.

What materials are used in the construction of the door panels?

The panels are constructed using two layers of 1.2mm aluminum alloy with an electrostatic coating, providing a total thickness options ranging from 40mm to 100mm.

How effective is the wind resistance of these doors?

These doors are designed to withstand wind speeds of 28-35m/s, which corresponds to Class 10-12 wind resistance.

What safety features are integrated into the door system?

Safety is ensured through a spring brake device to prevent breaking, an accident dropping safety device with a steel cord (securing drops within 5cm), and an optional bottom wireless safety airbag.

What is the typical opening and closing speed?

The motorized sectional doors operate at a speed of approximately 20-40cm per second.

Are these doors suitable for cold storage environments?

Yes, the doors are thermally insulated with a PU density of 48±2kg/m³ and EPDM sealing rubber that is cold-resistant, making them ideal for cold rooms and warehouses.
