China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
1 / 5
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door

China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
ISD-21
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Insulated and Cold Storage
Certification
TUV, CCC, ISO9001, RoHS, CE
Wind Resistant
Standard 450PA, Higher to 700PA
Door Panel Thickness
40mm - 43mm
Size Range
W:1500-6000mm H:2000-6000mm
Production Capacity
50,000 SQM Per Month
Application
Factory, Garage, Hotel, Warehouse
Industrial Sectional Door Overview
Product Description

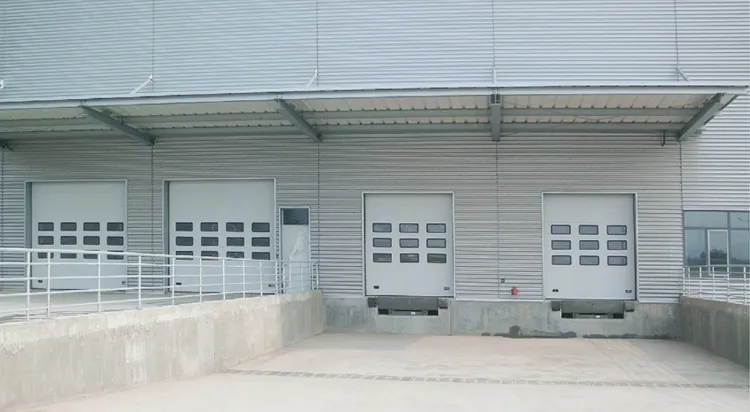

Sectional Door Detail 1
Sectional Door Detail 2

Industrial Sectional Door: Excellent insulation and closeness performance, good anti-wind structure, safe and reliable operation guarantee!

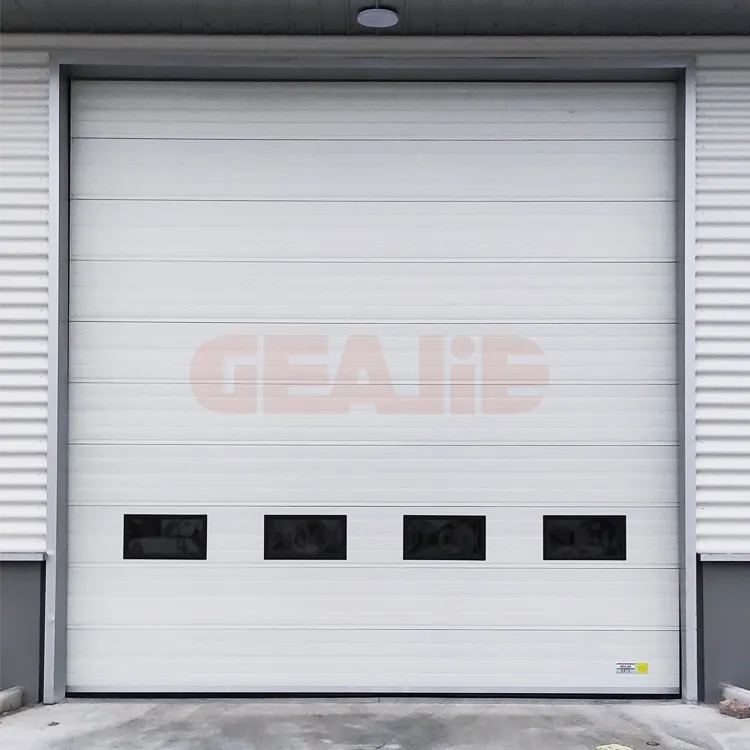

Product Show 1

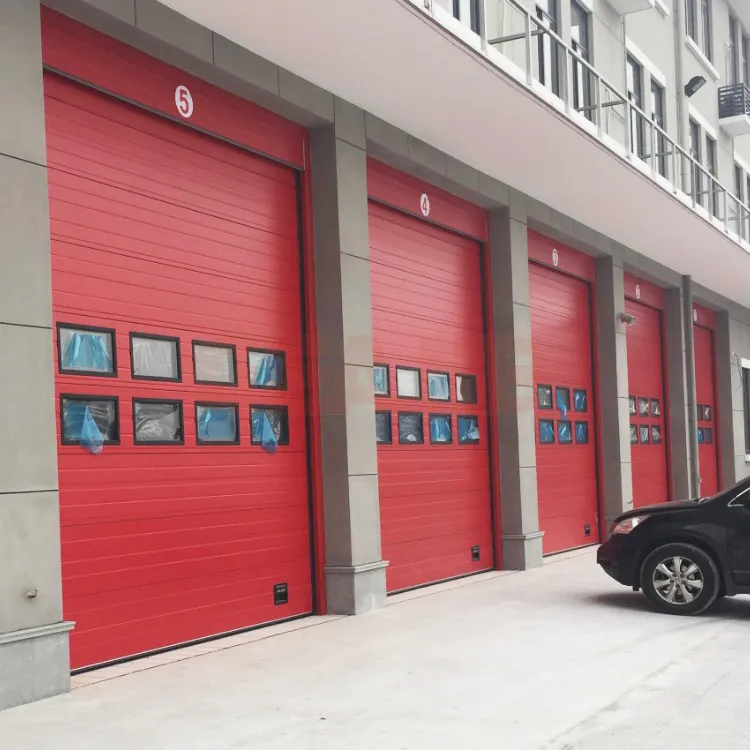

Product Show 2

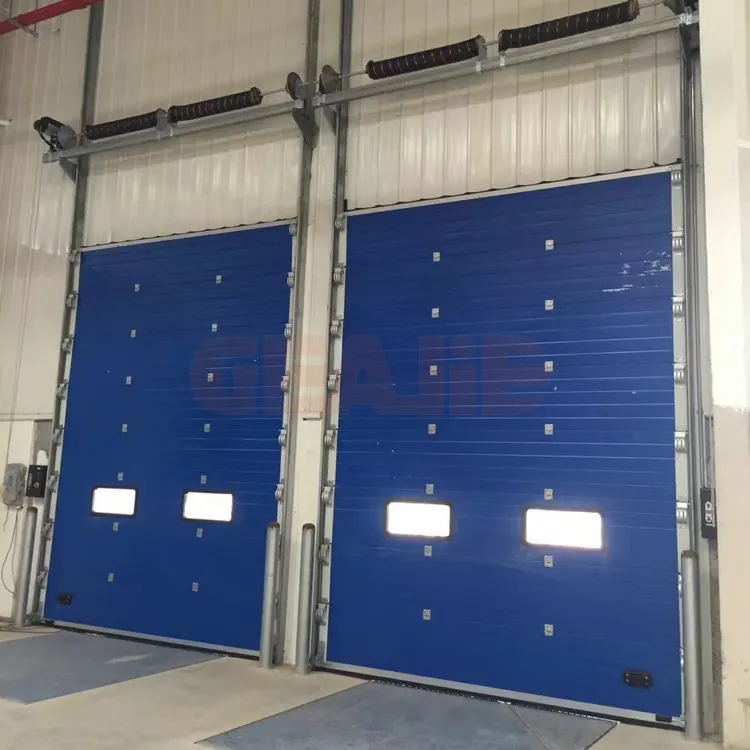

Product Show 3
Material Description
Feature Specification
Size RangeW:6000-12000mm, H:2000-8000mm
Opening Speed0.25m/s
Panel MaterialGalvanized steel or aluminum plate
Panel ThicknessAnti-pinch: 40mm | Insulated bridge: 43mm
Safety DevicesWire rope breakage protection, torsion spring protection, wireless airbag
Wind ResistanceStandard 450Pa, higher to 700Pa
Color OptionsRAL9002, RAL9016, RAL1023, RAL5005, RAL3002, Customizable
Motor Technical Parameters
Model 10DI 10C 14 H-F
Output torque100Nm100Nm140Nm
Output shaft speed24 rpm24 rpm14 rpm
Rated power0.37KW0.37KW0.55KW
Rated voltage1*AC 230/440V3*AC 230/440V1*AC 230V
Protective levelIP 54IP 54IP 54
Structural Design

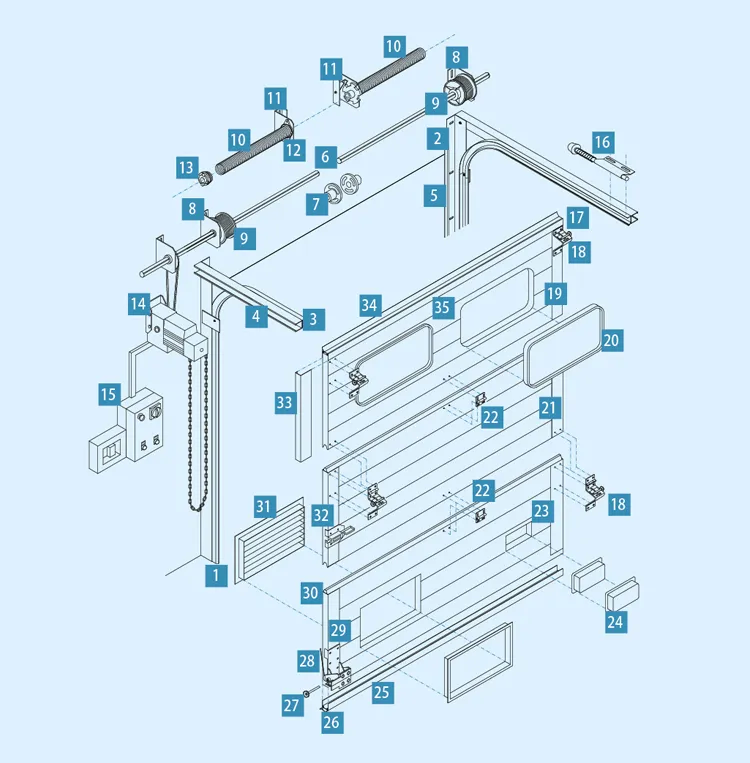

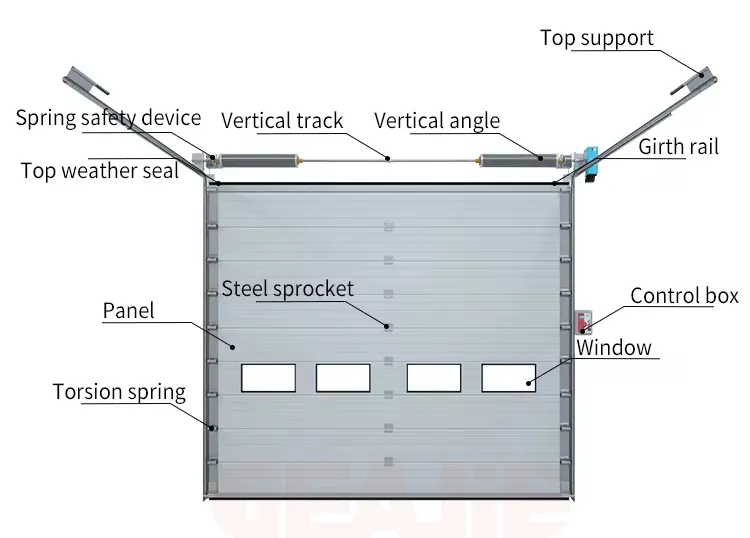

Structural Drawing
Detail 1

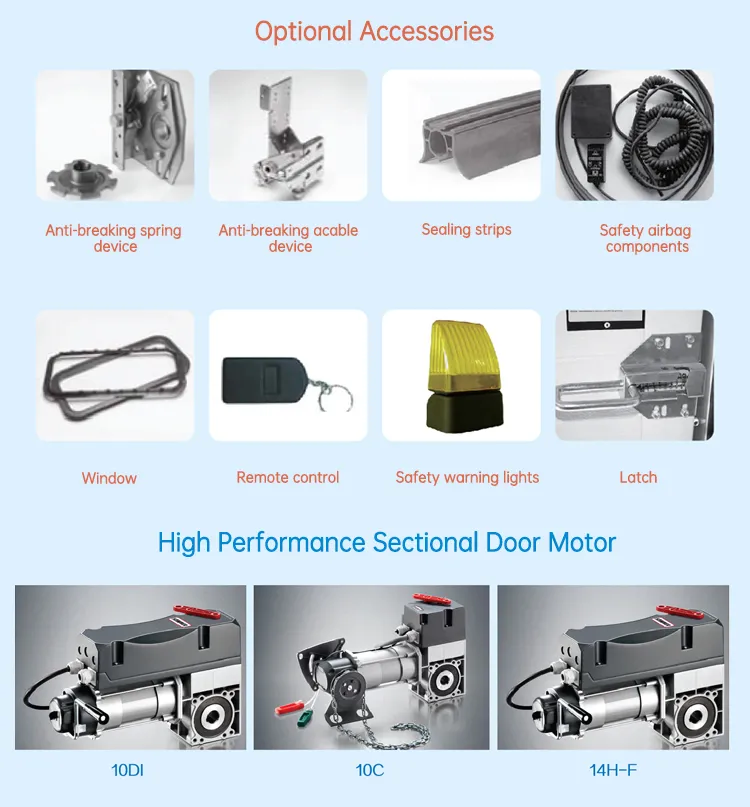

Detail 2
Product Advantages
  • Custom Lifting Methods: Multiple lifting methods (straight, standard, high/low lintel) to fit various building structures.
  • Durable Operation: Unique roller shaft design distributes force to wheels, extending service life and ensuring smooth running.
  • High-Quality Panels: Double-sided hot-dip galvanized steel with PU foam insulation (48±2kg/m3) and anti-pinch design.
  • Weather Resistance: Equipped with EPDM sealing rubber on all sides for excellent corrosion and weather resistance.
  • Advanced Safety: Integrated spring brake devices and wireless safety airbags to prevent accidents during operation.
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
What are the maximum available sizes for these doors?
The maximum available length is 6.5M and the maximum width is 6M, which is adjustable.
Are these doors easy to install?
Yes, the products are designed for easy installation.
What safety devices are included?
Standard configurations include wire rope breakage protection, torsion spring breakage protection, and wireless airbags.
What is the wind resistance rating?
The standard rating is 450Pa, but it can be customized to reach up to 700Pa.
What are the benefits of using these sectional doors?
They improve cargo handling efficiency, provide excellent thermal insulation, and ensure high security for industrial environments.
