Topanish Door
Topanish Door
| Model NO. | HSSD-100 |
| Material | Aluminum Alloy |
| Open Style | Rolling |
| Special Function | Soundproof / High Speed |
| Color | Silver (Customizable) |
| Certification | ISO9001, CE |
| Opening Speed | Max 2.35m/S (Adjustable) |
| Power Supply | 1-Phase 220V / 3-Phase 380V |
| Max Size | Width 10000mm, Height 10000mm |

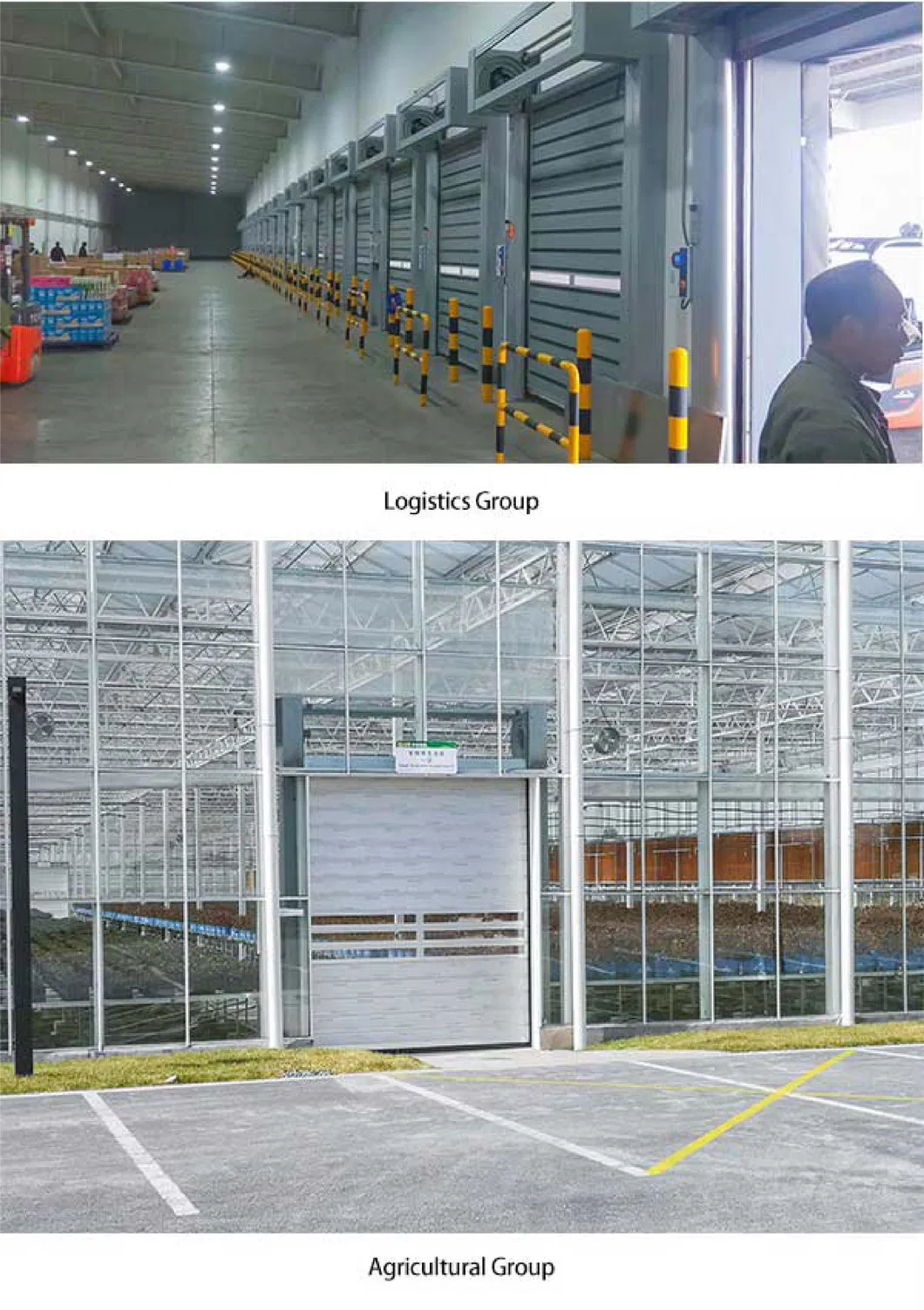

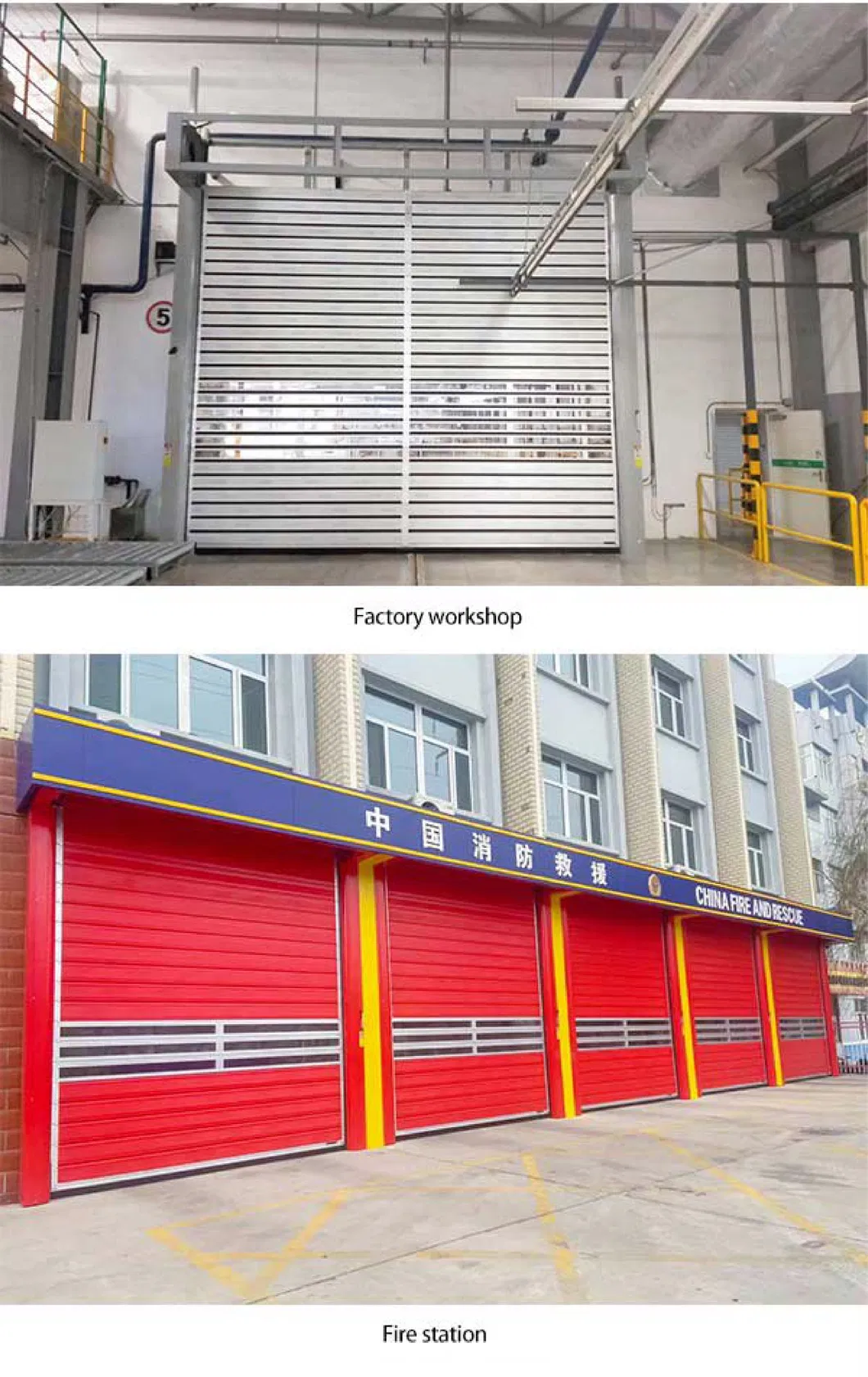

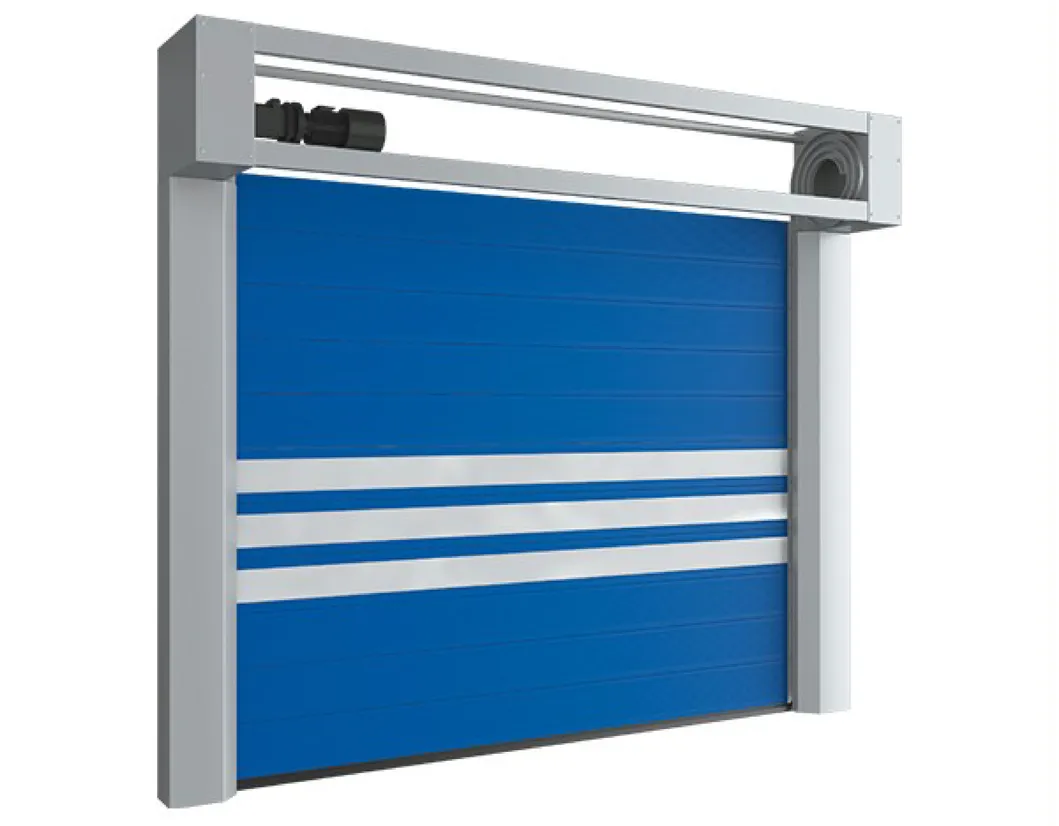

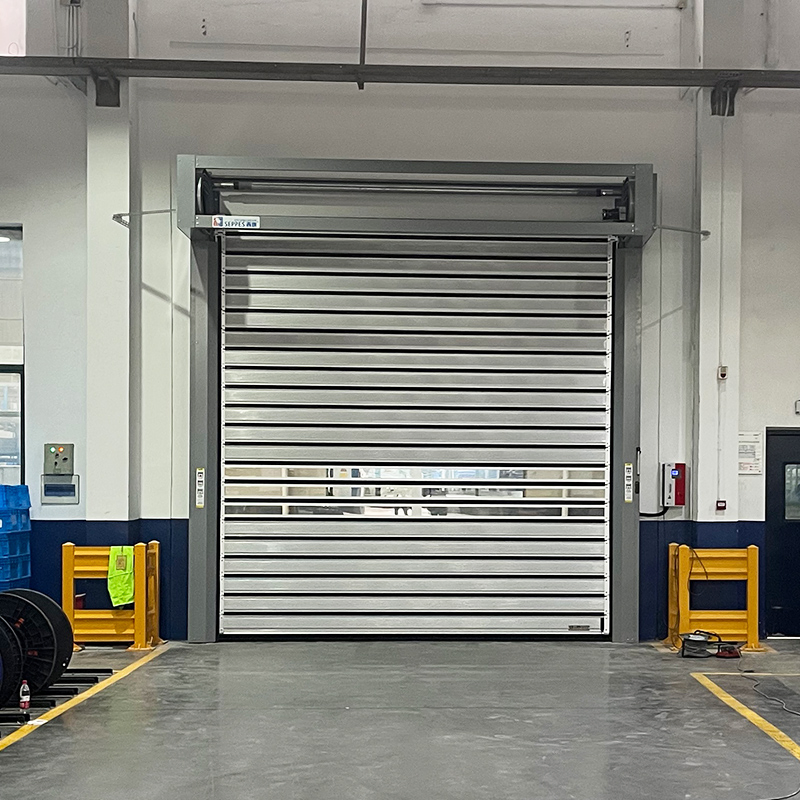

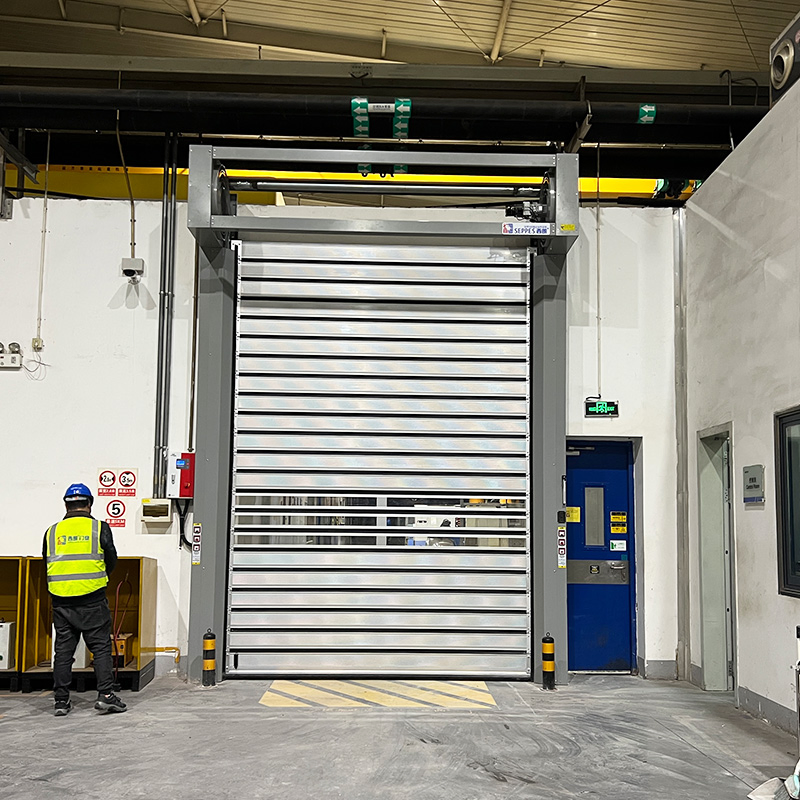

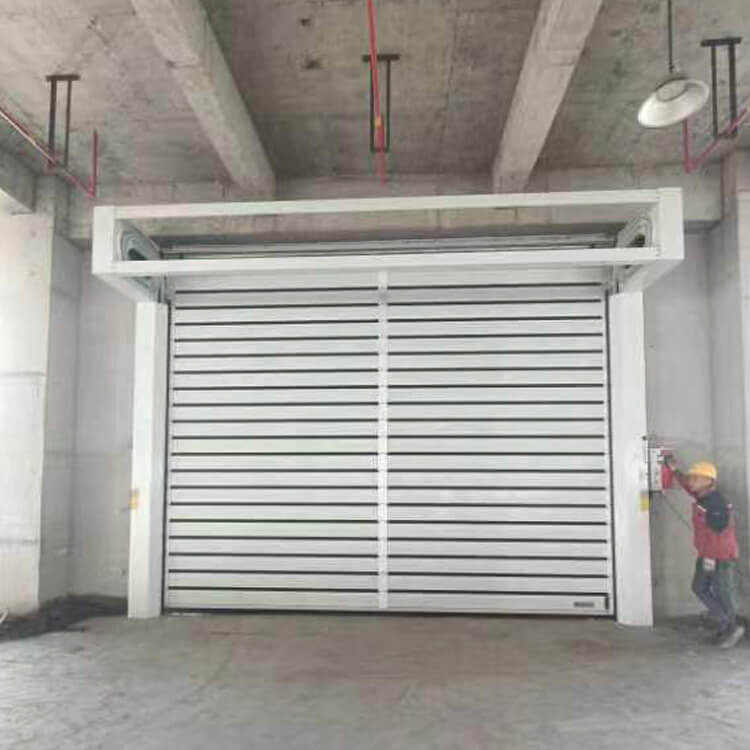

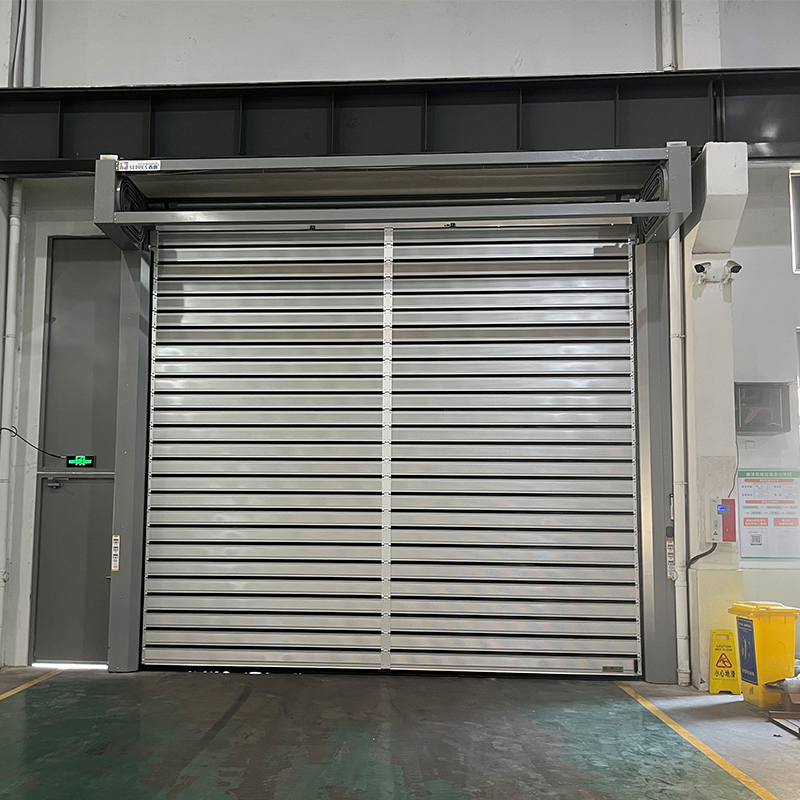

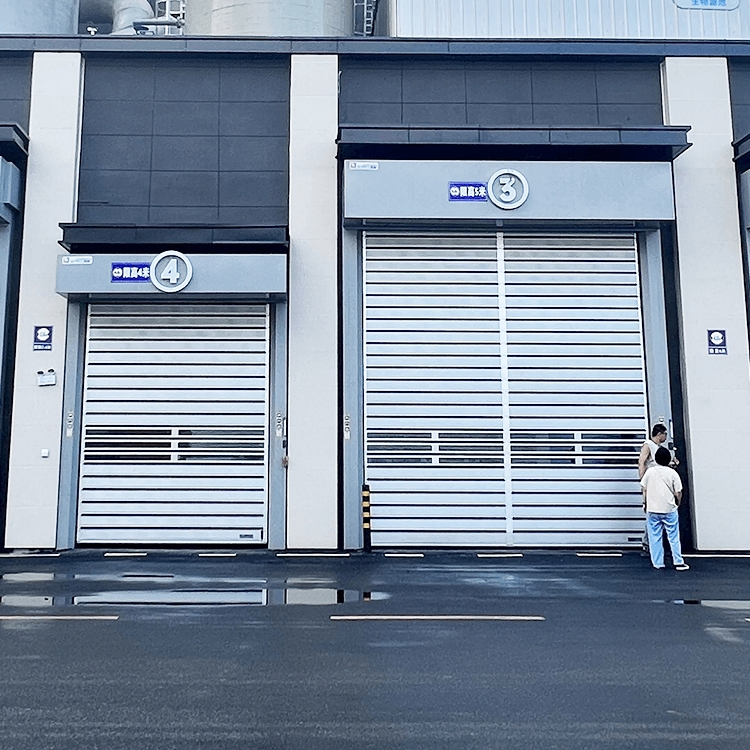

High speed spiral doors are ideal for industrial buildings, factories, warehouses, and parking garages. Utilizing a unique arc-shaped turbine and tensioning torque balance technology, these doors ensure stable, fast, and quiet operation.
Key Benefits: Enhanced security, superior thermal insulation, and high-frequency opening capabilities (up to 800 times per day).
0.7mm double-layer aluminum alloy filled with high-density polyurethane foam (40mm total thickness). Provides excellent thermal insulation and structural strength.
Advanced four-fold sealing structure ensures maximum airtightness (8.68m³/xh), isolating external dust, noise, and temperature.
Equipped with photoelectric protection and wireless safety bottom edges to prevent accidents during high-speed operation.
| Feature | Specification Details |
|---|---|
| Door Curtain | 0.7mm Aluminum alloy with polyurethane foam (42mm thickness) |
| Door Frame | 2.5mm Galvanized steel with spray paint finish |
| Control System | Microcomputer servo system with LCD fault code display |
| Security | Photoelectric protection & Wireless safety bottom edge |
| Max Speed | 2.0m/s (Opening) |
| Wind Resistance | Level 11 (National Standard) |
| Structure Type | Elliptical helical, L-shape, Vertical, or Horizontal |

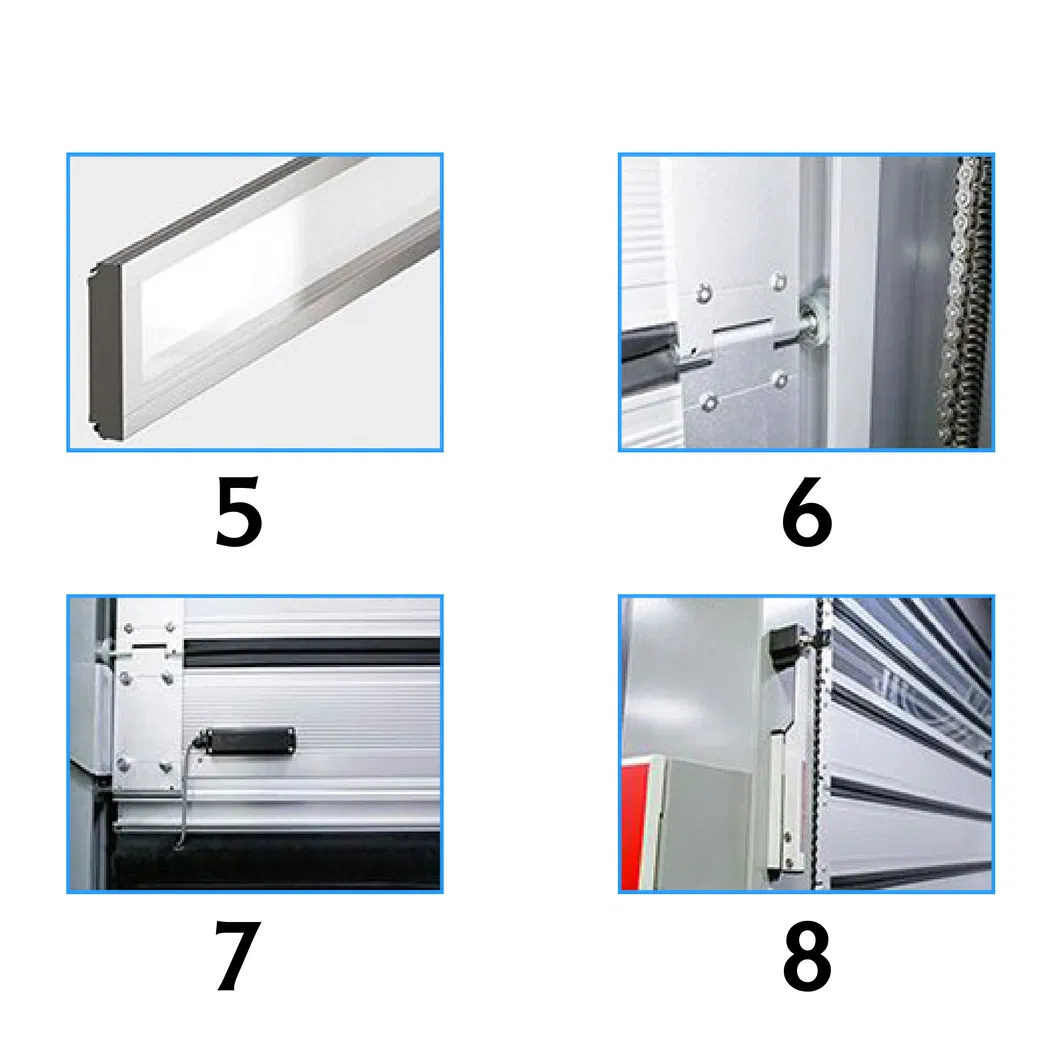

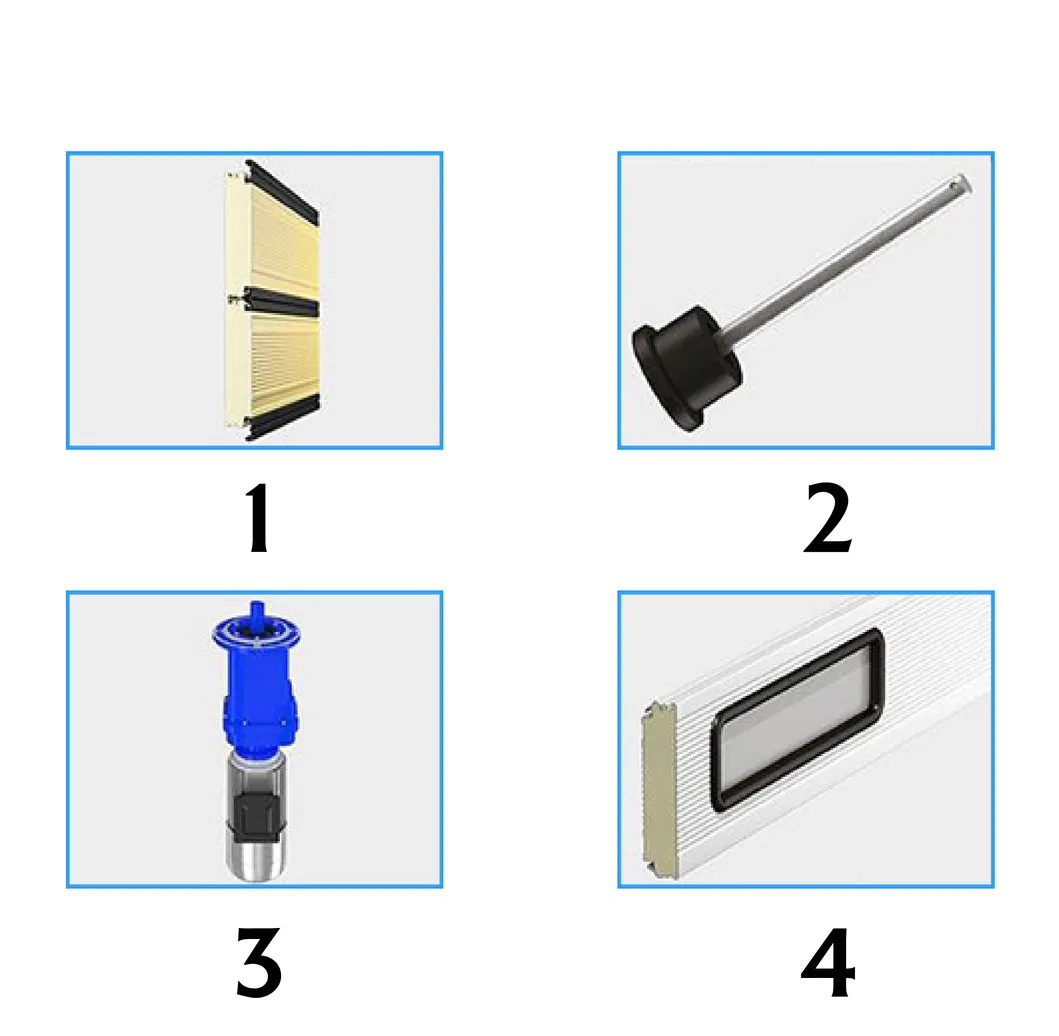

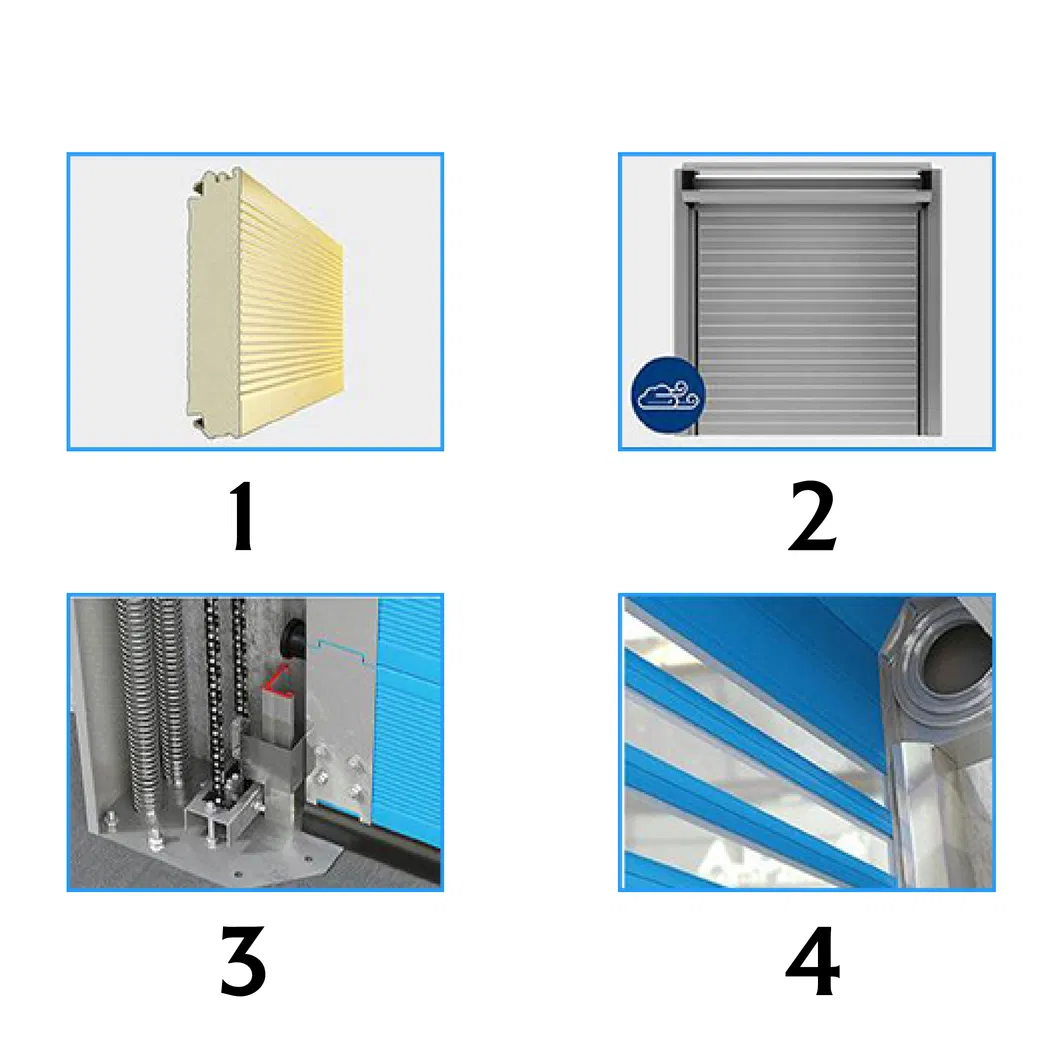

1. Double-layer Aluminum Panel | 2. Wear-resistant Pulley | 3. Servo Motor | 4. Vision Windows | 5. Silent Track | 6. Manual Release

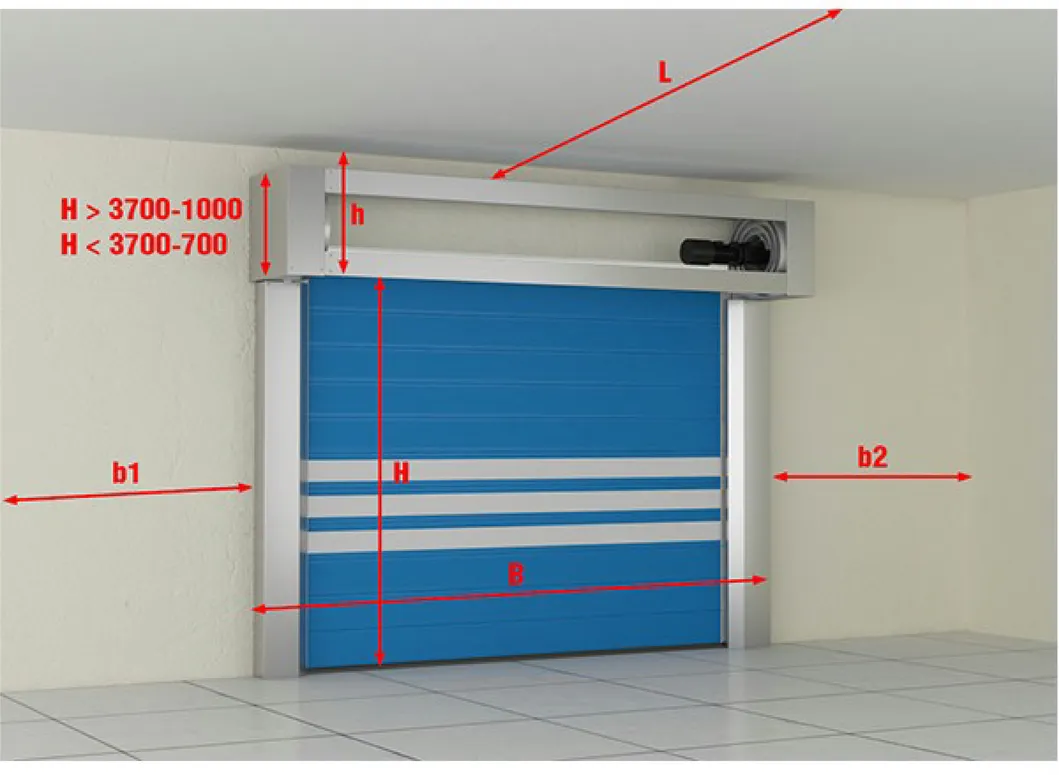

Required Dimensions for Quote:
