📋 Basic Information
Frame Material
Aluminum Alloy
Surface Finishing
Finished
📍 Product Description

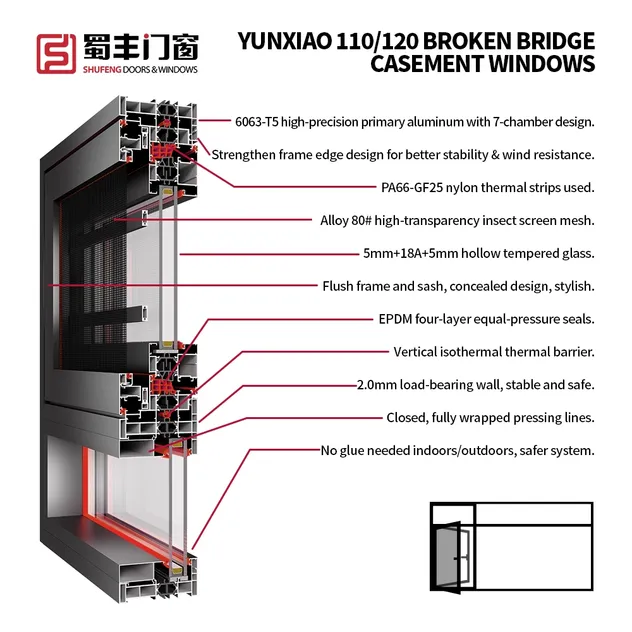

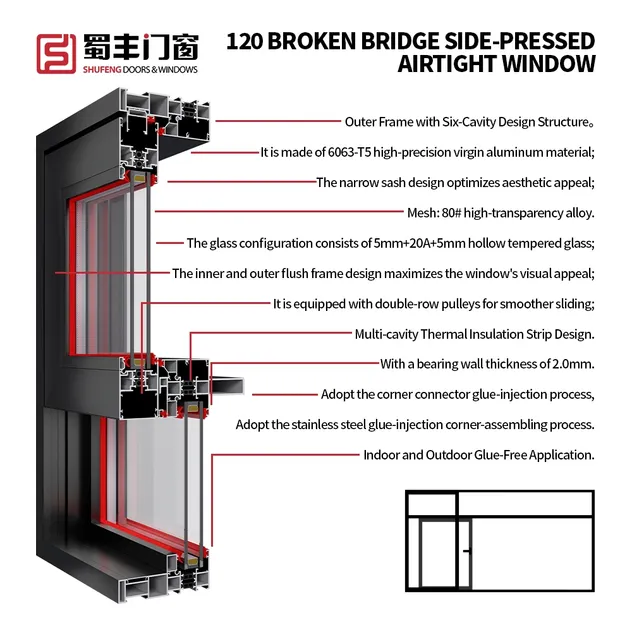

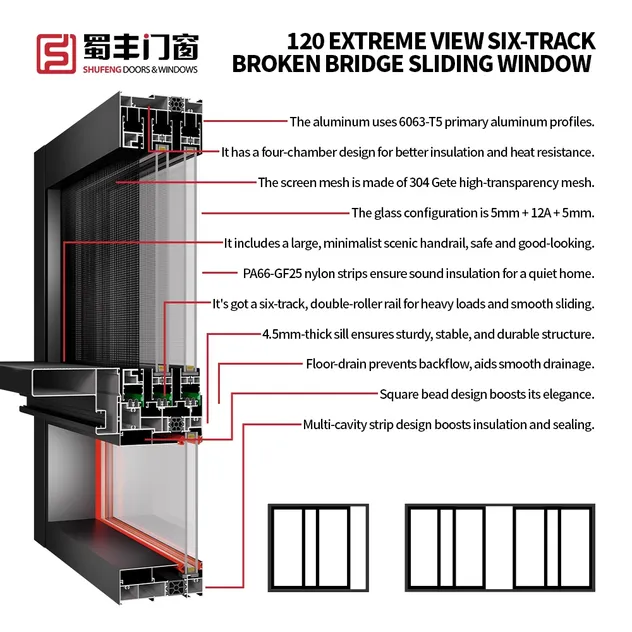

Aluminum profile: High precision 6063-T5 aluminum, wall thickness 2.0-3.0mm.
Imported hardware: Tested for 100,000 cycles, super load-bearing, comfortable, durable, and excellent anti-theft performance.
Frame fan flush design: Beautiful visual effect with hidden sealing strips, effectively improving the service life of doors and windows.
Pin gluing process: High strength corner code components combined with full system pin gluing for maximum stability and tightness.
Surface treatment: Powder spraying process, anti-corrosion, anti-aging, 20 years fade-resistant.
Minimalist Design: Modern aesthetic providing a simple, comfortable, and high-end home experience.
| Technical Specifications |
| Project Name | Aluminum alloy window |
| Contour thickness | Window: 1.4 - 3.0 mm | Door: 1.4 - 5.0 mm |
| Size | Customized |
| Type of glass | Double-glazed (5mm/6mm/8mm/10mm/12mm), Low-E, Laminated Glass |
| Surface treatment | Powder coating |
| Hardware brand | German century-old brand VBH / Chinese top brand RLS |
| Color | Grey, coffee, white, black (Customizable) |
🕂 Performance Parameters
| Test Item |
Unit |
Test Results |
Level |
| Air tightness (Positive Pressure) | m³/(m·h) | 1.4 | Level 6 |
| Air tightness (Negative Pressure) | m³/(m·h) | 1.3 | Level 6 |
| Water tightness performance | Pa | 350 | Level 4 |
| Wind resistance performance | kPa | 2.69 | Level 4 |
| Thermal insulation (U-Value) | W/(m²·K) | 2.2 | Level 6 |

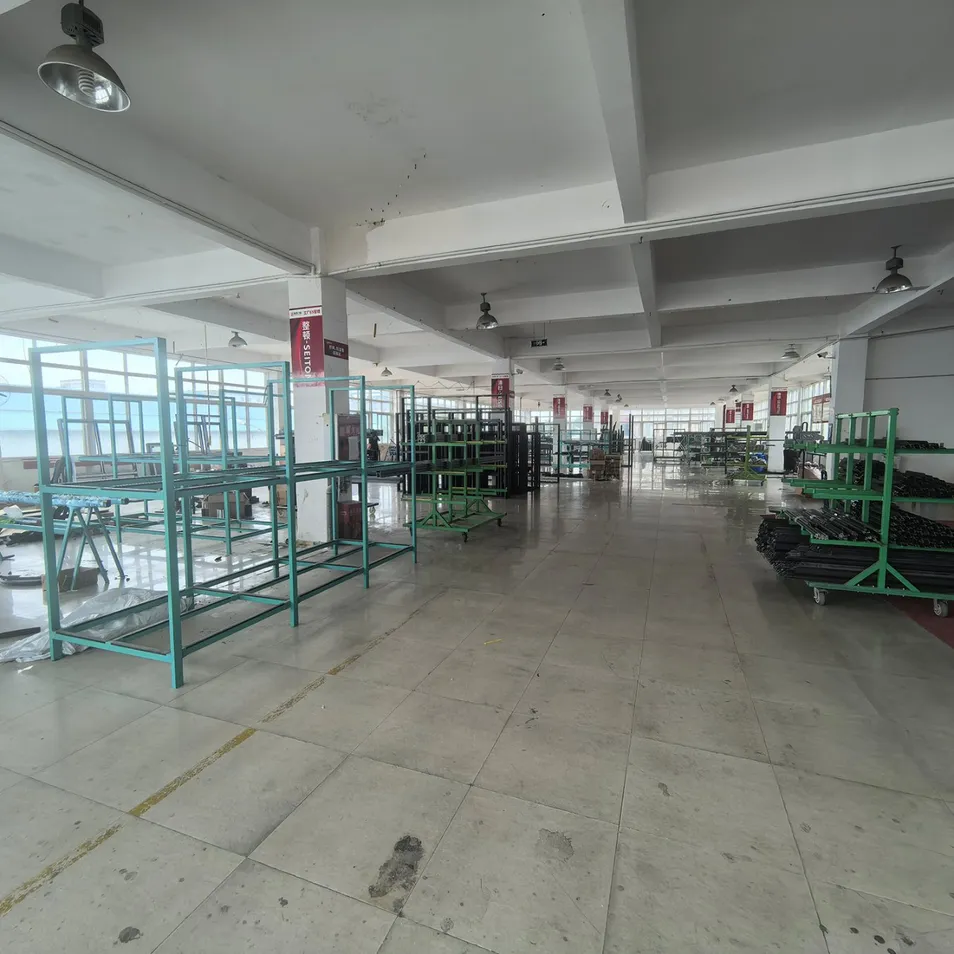

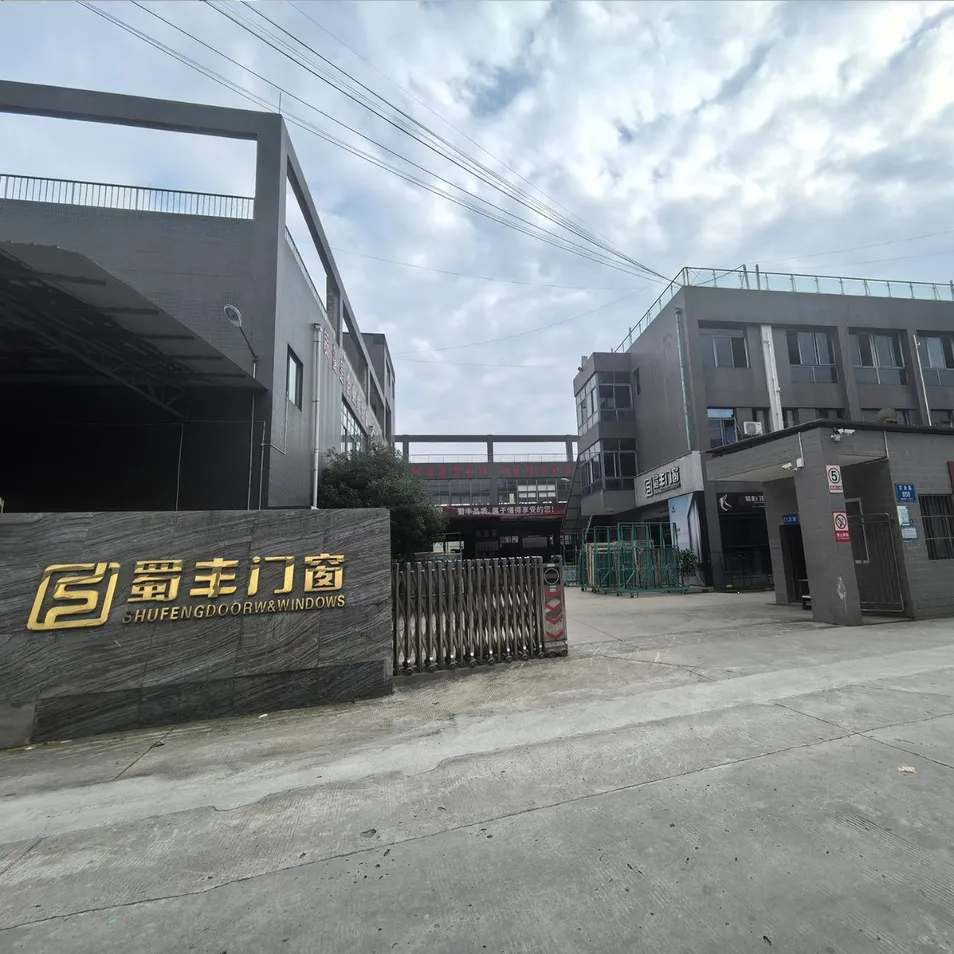

🏭 Manufacturing Expertise
With a focus on innovation and quality, our facility spans 7,000 square meters dedicated to window design, R&D, and manufacturing. We specialize in building-high end system door and window products that offer superior construction, efficiency, and aesthetics. Our mission is to promote healthy development in construction through resource-efficient and environmentally protective manufacturing.
Frequently Asked Questions
What aluminum alloy grade is used for these windows?
We use high-precision 6063-T5 aluminum with a wall thickness ranging from 2.0mm to 3.0mm for superior strength and durability.
How long does the surface color last?
The surface undergoes a professional powder spraying process which is anti-corrosive and anti-aging, guaranteed not to fade for up to 20 years.
What are the performance ratings for air and water tightness?
The windows are tested to achieve Level 6 for air tightness and Level 6 for water tightness, ensuring excellent protection against the elements.
What type of hardware brands do you use?
We utilize high-end hardware including the German century-old brand VBH and China's top-tier RLS brand for smooth operation and security.
Can the window sizes and colors be customized?
Yes, both sizes and colors (including grey, coffee, white, and black) are fully customizable to meet specific residential or commercial requirements.
What glass options are available for better insulation?
We offer various double-glazed options (e.g., 5mm+12A+5mm), Low-E glass, and laminated safety glass to provide optimal thermal and sound insulation.
